multi-purpoSe Physical-cyber Agri-forest Drones Ecosystem for governance and environmental observation

Información del proyecto

SPADE

Identificador del acuerdo de subvención: 101060778

DOI

10.3030/101060778

Fecha de la firma de la CE 7 Junio 2022

Fecha de inicio 1 Septiembre 2022

Fecha de finalización 31 Agosto 2026

Financiado con arreglo a

• Food, Bioeconomy Natural Resources, Agriculture and Environment

Coste total

€ 5 822 937,50

Aportación de la UE

€ 5 816 687,50

Coordinado por

ETHNIKO KENTRO EREVNAS KAI TECHNOLOGIKIS ANAPTYXIS
Greece

Periodic Reporting for period 2 - SPADE (multi-purpoSe Physical-cyber Agri-forest Drones Ecosystem for governance and environmental observation)

Período documentado: 2024-03-01 hasta 2025-08-31

Resumen del contexto y de los objetivos generales del proyecto

SPADE is a 4-year project funded by the European Union within the Horizon Europe programme, with 21 partners from 10 European countries and an overall budget of 5.8 M €. The project has started in September 2022, is coordinated by CERTH.
The strategic objective of SPADE project is to develop an intelligent ecosystem to address the multiple purposes concept in the light of deploying unmanned aerial vehicles (UAVs alias drones) to promote sustainable digital services for the benefit of a large scope of end users in the sectors of crop production, forestry, and livestock. This includes individual UAV usability, UAV type applicability (e.g. swarm, collaborative, autonomous), UAV governance and UAV-generated data trustworthiness. Multi-purposes will be further determined in the sensing dataspace reusability based on trained Artificial Intelligence (AI)/Machine Learning (ML) models. These models will enable sustainability and resilience of the overall life cycle for developing, setting up, offering, providing, testing, validating, refining as well as enhancing digital transformations and “innovation building” services in forestry and agriculture (crop and livestock farming). Pilot cases will contribute toward greater goals, such as the reduction of deforestation, precision farming and animal welfare.
Three Pilots, one per domain (i.e. forestry, crop production and livestock farming), deploying 9 Test Cases, which, combined with 2 Open Calls for up to 12 complementary small projects will contribute toward the goals of sustainable forestry and farming.

Trabajo realizado desde el comienzo del proyecto hasta el final del período abarcado por el informe y los principales resultados hasta la fecha

Concerning the regulatory framework analysis at international and national level, data on the mapped legislation were aggregated. Governance applications overview is ongoing to contribute to the D1.2. SPADE was also very active in contributing to standards related to UAS while the gender dimension analysis produced relevant outcome that has been published in book chapter. The requirements for the development of the SPADE-manufactured drones were defined by the consortium and the SPADE flying platforms have been developed. Three types of drones are constructed within SPADE: a) small size swarm drones, b) medium size with edge-computing capabilities and c) medium-large size planting drone. The SPADE ecosystem architecture has been defined and the the platform with integrated DTw was developed along with the data broker infrastructure. Furthermore, edge computing algorithms were developed and are currently being evaluated. A DTw simulation system for environmental impact assessment using different possible scenarios is also being developed.
Wthin WP4, the pilots are fully deployed, while the 1st SPADE Open Call has finished and the toolds developed were Open Sourced and are available through ECLIPSE platform. The second SPADE Open Call has launched within RP2 and the sub-projects have initiated their activities. The consortium was very active in the outreach and sustainability actions for dissemination, exploitation and communication and the activities were efficiently communicated with the scientific communities, stakeholders, and general public. Exploitation was also adressed having support by the Booster Service. Finally, the project was effectively managed following a tight management scheme securing continuous communication among the partners and the commission. All the foreseen tasks were implemented without reporting delays and the relevant deliverables have been prepared and submitted as listed in Table 1.

Avances que van más allá del estado de la técnica e impacto potencial esperado (incluida la repercusión socioeconómica y las implicaciones sociales más amplias del proyecto hasta la fecha)

1. The project developed and is updating an innovative UAS platform for autonomous planting of trees in unreachable areas. The system was submitted for pattenting.
2. Developed small swarm drones for under canopy mapping.
3. Developed small-medium size drones with edge-computing capabilities
4. SPADE contributes to more than 10 standards
5. Developed edge computing algorithms for real time detection and counting of animals
6. Developing ML algorithms for disease detection in potato and olives
7. Developed DTw simulation system for environmental impact assessment

Project logo

SPADE Livestock systems integration

SPADE droens with Edge-computing

SPADE planting drone

mechanism for planting trees using SPADE planting drone

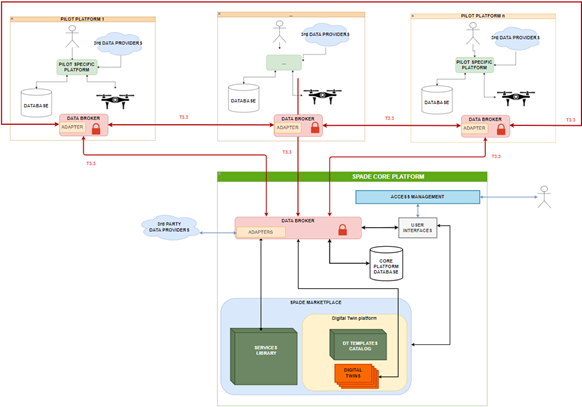

The architecture of SPADE ecosystem

SPADE edge coputing Livestock

SPADE drone with acoustic sensor

SPADE platform

SPADE DTw simulation tool

prototype of mechanism for planting trees using SPADE planting drone
