Periodic Reporting for period 1 - Loss-less Monochroma (Lossless Electron Beam Monochromator for Enhanced Resolution in Electron Microscopy)
Período documentado: 2023-04-01 hasta 2024-09-30
The performance of high-end electron microscopes (EMs) is significantly constrained by the energy spread of the electron beam (DeltaE), which impacts resolution by introducing chromatic aberrations. This energy spread not only affects image clarity but also limits the effectiveness of various electron spectroscopy applications. Chromatic aberrations occur when electrons of different energies are focused at different points, leading to blurred images and reduced precision in measurements.
These limitations are particularly pronounced in several key applications. Firstly, in low-voltage scanning electron microscopy (LV-SEM), which is widely used in the semiconductor industry as a critical-dimensions analysis tool, known as CD-SEM, the energy spread can hinder the accurate measurement of tiny features on microchips. This is crucial as the industry constantly pushes towards smaller and more complex device architectures.
Secondly, high-resolution transmission electron microscopy (HR-TEM) is increasingly important in the life sciences for its ability to visualize biological structures at the atomic level. The energy spread can limit the ability to resolve fine details in biological samples, which is essential for understanding complex biological processes and developing new medical treatments.
Lastly, ultra-fast TEM (UTEM) is used to study ultrafast phenomena, capturing events that occur on timescales ranging from nanoseconds to femtoseconds. The energy spread can affect the temporal resolution and the ability to accurately observe rapid dynamic processes, which are fundamental for advancing research in materials science, chemistry, and physics.
Overall, addressing the challenges posed by electron energy spread is critical for enhancing the capabilities of electron microscopes across diverse scientific and industrial applications. By improving energy resolution, researchers can achieve greater precision and clarity in their observations, driving innovations in technology and science.
The state-of-the-art solution to mitigate the electron energy spread limitation is slit-based monochromators (MCs). These MCs can provide electron energy spread (DeltaE) on the order of several meV (relative to (DeltaE)=800 meV and up in standard EM’s). However, this improvement comes with a penalty: severely attenuating the electron flux by a factor of x10 and above. This attenuation degrades the performance of HR-TEMs. In particular, flux attenuation is a major limitation in UTEM applications, which suffer from low flux a priori due to the pulsed nature of their operation, thereby preventing the application of conventional MCs to UTEM. In addition, slit-based MCs are expensive and require extremely stabilized power sources, which highly complicate their deployment and limit the integration time due to drift phenomena. Moreover, such slit-based MCs introduce spherical aberrations that fundamentally limit image acquisition.

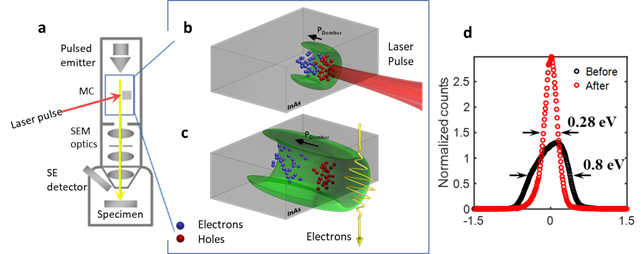

In this work, we demonstrated a novel electron monochromator technology that is lossless, tunable, aberration-free, cost-effective, and modular, thus making it applicable to a wide range of EM systems. Such an apparatus is an essential device for improving the performance of future electron microscopes.
These limitations are particularly pronounced in several key applications. Firstly, in low-voltage scanning electron microscopy (LV-SEM), which is widely used in the semiconductor industry as a critical-dimensions analysis tool, known as CD-SEM, the energy spread can hinder the accurate measurement of tiny features on microchips. This is crucial as the industry constantly pushes towards smaller and more complex device architectures.
Secondly, high-resolution transmission electron microscopy (HR-TEM) is increasingly important in the life sciences for its ability to visualize biological structures at the atomic level. The energy spread can limit the ability to resolve fine details in biological samples, which is essential for understanding complex biological processes and developing new medical treatments.
Lastly, ultra-fast TEM (UTEM) is used to study ultrafast phenomena, capturing events that occur on timescales ranging from nanoseconds to femtoseconds. The energy spread can affect the temporal resolution and the ability to accurately observe rapid dynamic processes, which are fundamental for advancing research in materials science, chemistry, and physics.
Overall, addressing the challenges posed by electron energy spread is critical for enhancing the capabilities of electron microscopes across diverse scientific and industrial applications. By improving energy resolution, researchers can achieve greater precision and clarity in their observations, driving innovations in technology and science.
The state-of-the-art solution to mitigate the electron energy spread limitation is slit-based monochromators (MCs). These MCs can provide electron energy spread (DeltaE) on the order of several meV (relative to (DeltaE)=800 meV and up in standard EM’s). However, this improvement comes with a penalty: severely attenuating the electron flux by a factor of x10 and above. This attenuation degrades the performance of HR-TEMs. In particular, flux attenuation is a major limitation in UTEM applications, which suffer from low flux a priori due to the pulsed nature of their operation, thereby preventing the application of conventional MCs to UTEM. In addition, slit-based MCs are expensive and require extremely stabilized power sources, which highly complicate their deployment and limit the integration time due to drift phenomena. Moreover, such slit-based MCs introduce spherical aberrations that fundamentally limit image acquisition.
In this work, we demonstrated a novel electron monochromator technology that is lossless, tunable, aberration-free, cost-effective, and modular, thus making it applicable to a wide range of EM systems. Such an apparatus is an essential device for improving the performance of future electron microscopes.
Our goal in this proof-of-concept project was to demonstrate that our monochromator (MC) can compete with existing MCs in reducing beam energy spread while maintaining its advantages of being lossless, aberration-free, and modular. To achieve these results, we followed a structured approach:
First, we developed a simulation tool that allowed us to optimize parameters, resulting in a theoretical ninefold increase in MC efficiency through enhanced THz generation. This improvement is expected to achieve a twentyfold reduction in pulse energy, aligning with our project targets.
As an alternative THz source, we explored the use of a KTP crystal, which generates radiation through a non-linear effect rather than the charge dynamics of InAs. This approach led to a fourfold increase in THz intensity, bringing us closer to our project goals.
We further utilized our simulation tool to optimize the interaction between the electron beam and the THz field, making it adaptable to various electron primary energies used in transmission electron microscopes (TEMs) and scanning electron microscopes (SEMs).
Additionally, we designed, built, and tested a second interaction point for electrons in the TEM above the sample, achieving effective beam monochromation. This advancement enabled us to experimentally observe free-electron quantum walks for the first time, which had previously only been theoretically predicted.
First, we developed a simulation tool that allowed us to optimize parameters, resulting in a theoretical ninefold increase in MC efficiency through enhanced THz generation. This improvement is expected to achieve a twentyfold reduction in pulse energy, aligning with our project targets.
As an alternative THz source, we explored the use of a KTP crystal, which generates radiation through a non-linear effect rather than the charge dynamics of InAs. This approach led to a fourfold increase in THz intensity, bringing us closer to our project goals.
We further utilized our simulation tool to optimize the interaction between the electron beam and the THz field, making it adaptable to various electron primary energies used in transmission electron microscopes (TEMs) and scanning electron microscopes (SEMs).
Additionally, we designed, built, and tested a second interaction point for electrons in the TEM above the sample, achieving effective beam monochromation. This advancement enabled us to experimentally observe free-electron quantum walks for the first time, which had previously only been theoretically predicted.
Our project successfully demonstrated that our monochromator (MC) can effectively compete with existing technologies by reducing beam energy spread while maintaining its advantages of being lossless, aberration-free, and modular.
Potential Impacts
The results of our project have significant implications for electron microscopy and related technologies:
Widespread Adoption: Our simplified and potentially much cheaper MC, with reduced losses, is poised to revolutionize the TEM and SEM markets. Current MCs are costly and bulky, limiting their use to large research centers. Our design breaks this barrier, making high-resolution TEM and SEM more accessible to medicine and industry. The modular and lossless nature of our MC design also allows for easy integration into existing systems, enhancing their capabilities without requiring significant redesign.
Scientific Advancements: Ultra-fast TEMs (UTEMs) stand to benefit significantly from our lossless MC, as they cannot use standard slit-based MCs due to the low current associated with their pulsed operation. Our innovation enables the observation of fine structures in ultra-fast phenomena, such as free-electron quantum walks, opening new avenues for fundamental research in quantum mechanics and materials science.
Technological Innovation:
Key Needs for Further Uptake and Success
To ensure the successful uptake and commercialization of our technology, several key needs must be addressed:
Further Research and Development: Continued refinement of the simulation tool and experimental setups will help optimize performance and adapt the technology to a wider range of applications.
Demonstration Projects: Conducting demonstration projects in collaboration with industry partners will showcase the technology's capabilities and build confidence among potential users. We have already approached several companies for such action.
Access to Markets and Finance: Identifying and securing funding sources, as well as establishing partnerships with key industry players, will be crucial for scaling up production and reaching broader markets.
Commercialization Strategy: Developing a robust commercialization strategy, including marketing and sales plans, will facilitate the transition from prototype to market-ready product.
IPR Support: We have already secured our intellectual property rights through a patent application which is now at the PCT stage.
By addressing these needs, we can maximize the potential impact of our project and ensure its success in the marketplace.
Potential Impacts
The results of our project have significant implications for electron microscopy and related technologies:
Widespread Adoption: Our simplified and potentially much cheaper MC, with reduced losses, is poised to revolutionize the TEM and SEM markets. Current MCs are costly and bulky, limiting their use to large research centers. Our design breaks this barrier, making high-resolution TEM and SEM more accessible to medicine and industry. The modular and lossless nature of our MC design also allows for easy integration into existing systems, enhancing their capabilities without requiring significant redesign.
Scientific Advancements: Ultra-fast TEMs (UTEMs) stand to benefit significantly from our lossless MC, as they cannot use standard slit-based MCs due to the low current associated with their pulsed operation. Our innovation enables the observation of fine structures in ultra-fast phenomena, such as free-electron quantum walks, opening new avenues for fundamental research in quantum mechanics and materials science.
Technological Innovation:
Key Needs for Further Uptake and Success
To ensure the successful uptake and commercialization of our technology, several key needs must be addressed:
Further Research and Development: Continued refinement of the simulation tool and experimental setups will help optimize performance and adapt the technology to a wider range of applications.
Demonstration Projects: Conducting demonstration projects in collaboration with industry partners will showcase the technology's capabilities and build confidence among potential users. We have already approached several companies for such action.
Access to Markets and Finance: Identifying and securing funding sources, as well as establishing partnerships with key industry players, will be crucial for scaling up production and reaching broader markets.
Commercialization Strategy: Developing a robust commercialization strategy, including marketing and sales plans, will facilitate the transition from prototype to market-ready product.
IPR Support: We have already secured our intellectual property rights through a patent application which is now at the PCT stage.
By addressing these needs, we can maximize the potential impact of our project and ensure its success in the marketplace.
