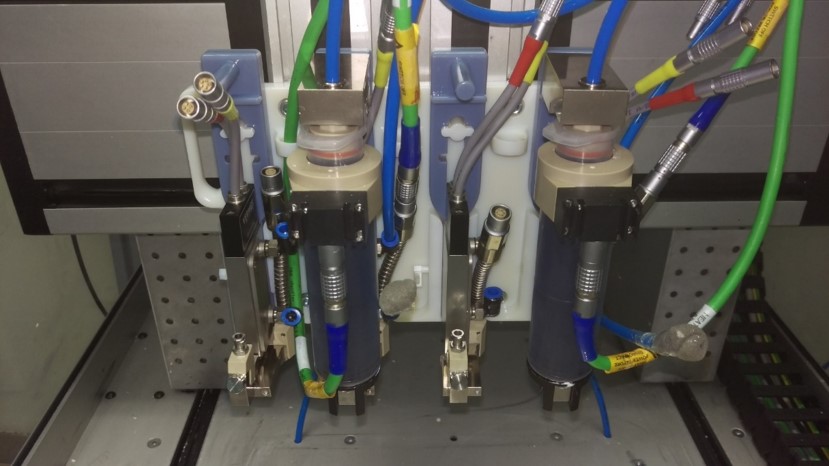

Initially, in case of medical implants, Magnetic resonance spectrography data had be transferred into CAD files. The development of tailored polymeric systems for the FFF (Fused Filament Fabrication) and T3DP (Thermoplastics 3D Printing), and for the LCM (Lithography based Ceramic Manufacturing), was the base for the following process development. Different multicomponent formulations were designed and tested. For all three AM techniques existing devices which are suited for single material applications were further developed and equipped with necessary features for solving the project tasks.
Zirconia and stainless steel are well suited for the desired metal/ceramic composites. For the combination of black and white zirconia two differently colored powders were used, which have nearly the same shrinkage behavior during sintering. The combination of both AM methods, FFF and T3DP with conventional shaping methods like injection molding could be carried out successfully.

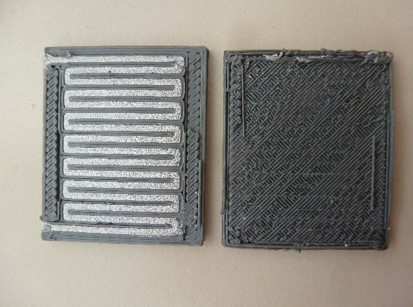

The customised IR heater offers the possibility of manufacturing a product which is unique and technically unachievable by traditional processes. The IR heaters record a reasonably low ohmic resistance. In comparison to standard cast ceramic IR heaters, this heater is of a smaller dimensional shape then would be manufactured using casting. Given that the small heater can then operate at a relatively high temperature this could be a solution for many markets.

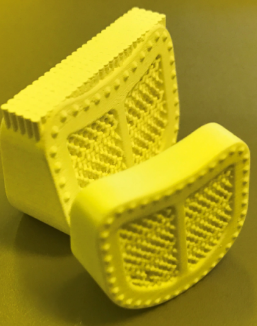

The spinal cage geometry was revised considering printing process and later mechanical testing. Two varieties were designed. It was proofed that it is possible to print such an extreme cage geometry. Moreover, cost estimation was carried out.
For the partial resurfacing knee implant (PARES) real patient data had been analyzed and one model was chosen to be used to design patient-specific implants. It consists of two regions - the partial resurfacing surface made of solid material which needs a post-treatment by grinding and a trabecular structure for improving the osseointegration of the implanted part.
A special feature for additive manufacturing of the unicondylar knee implant was the so called “2D-structure” on the inner surfaces to facilitate osseointegration of the implanted part. The unicondylar geometry shows all the features necessary to prove its functionality.
For the micro surgical gripper the initial requirements are taken from the benchmark laparoscopic ligation instrument. Due to the challenges of printing and curing conductive zirconia by LCM it has been agreed to focus on printing the demonstrator parts with a combination of zirconia and stainless steel by T3DP. The biggest challenge for manufacturing with T3DP was the high resolution difference between the stereolithography-based manufacturing process and Thermoplastic 3D-Printing.
The watch case consists of a white watch bezel with black numbers. The demonstrator has been made by T3DP again. The multi-color components could be sintered nearly defect-free.
