Periodic Reporting for period 1 - cryo-bacteria-reactor (Development of the flow through bioreactor of 3D-structured bacteria for biodegradation of aromatic chloroderivatives from contaminated water)
Reporting period: 2016-09-15 to 2018-09-14

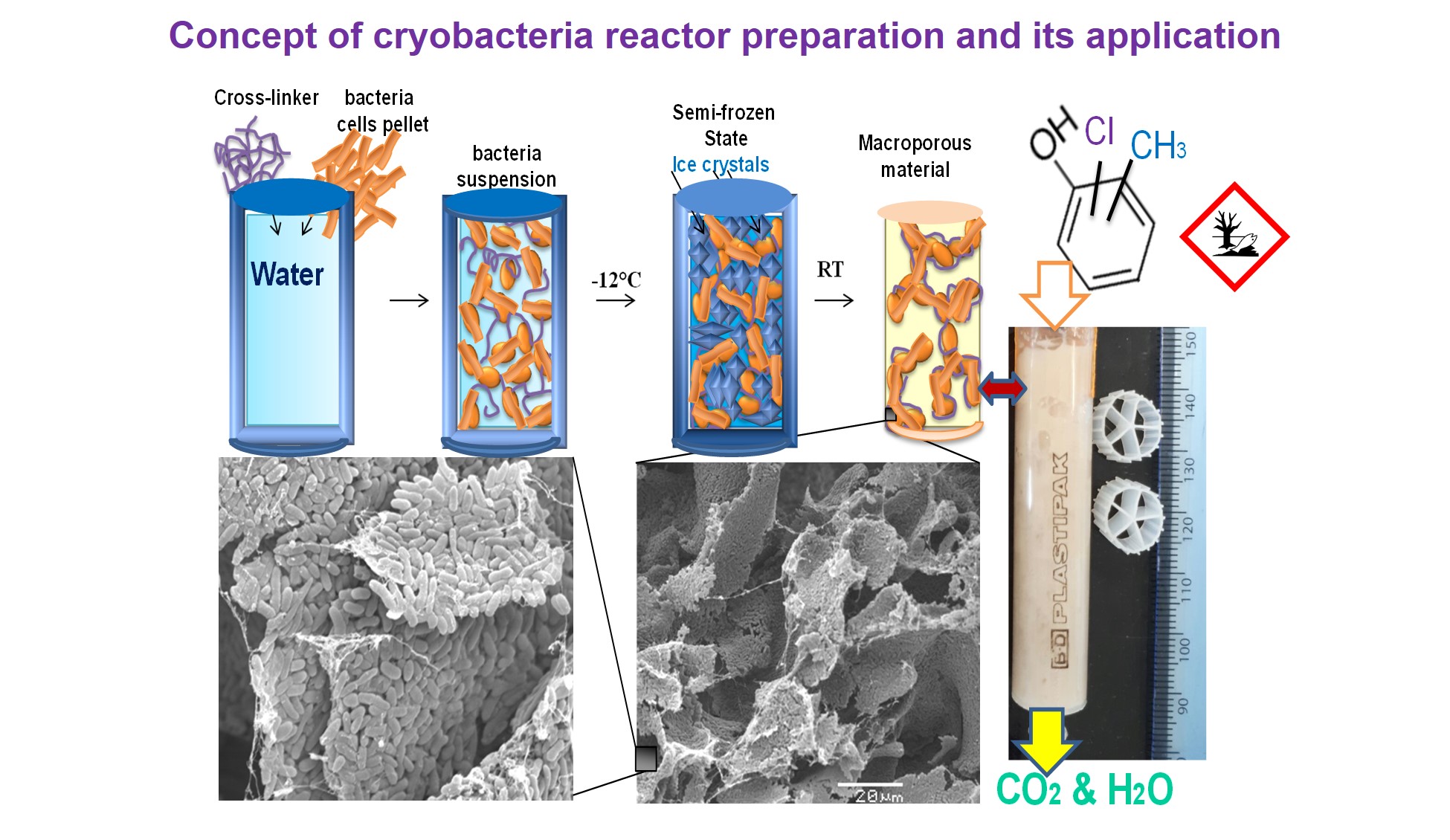

Four bacteria strains (non-pathogenic) known to be able to degrade phenol derivatives were selected such as (Pseudomonas mendocina, Rhodococcus korensis, Acinetobacter radioresistence and Athrobacter chlorophenolicus). They were directly cross-linked into a highly water permeable 3D-structured macroporous material using novel cross-linking polymers. This entailed the production of robust 3D microporous, non-toxic, material (cryogels) containing mostly (90%) immobilised phenol-degrading bacteria. The chemical composition and concentration of the polymers used as cross-linkers for bacterial cells were optimised to obtain strong cryogel material with retained metabolic activity of the cells. Synthesised new polymers were comprehensively characterised by the use of modern advanced methods such as infrared microscopy, proton nuclear magnetic resonance, measurement of the surface charge, molecular weight distribution and thermostability. Toxicity of polymers to different bacteria strains as well as the effect of freezing on the viability of cross-linked cells was assessed using spectrophotometric MTT assay and laser scanning confocal microscopy. Overall, six polymers and their combinations were utilised to produce spongy like materials for bioremediation purposes using four bacterial strains. For the first time we are able to report reproducible procedures of synthesis of new cross-linking agents as well as a detailed reproducible protocol of bioreactor preparation. Optimal combination of novel cross-linking polymers (PEI-al and PVA-al) for the preparation mechanically stable and elastic macroporous 3D bioreactors based on bacteria were selected for remediation study. The viability of the cells before and after spongy material preparation, as well as after remediation cycle were examined and visualised using different types of microscopy.

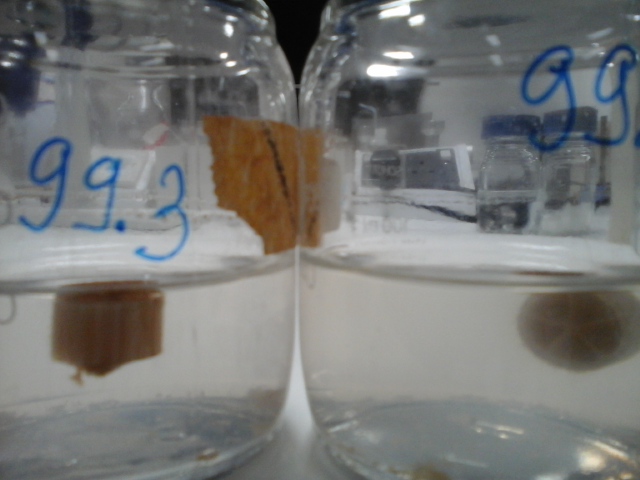

Obtained macroporous 3D bioreactors were used toward bioremediation of phenol, cresol, nitrophenol, chlorophenols and dichlorophenols. Mixtures of phenolic compounds in river and underground water and waste waters or in model buffered solutions at pH 6, 7.2 and 8, respectively. Three generations of 3D bioreactors were prepared and tested in a dynamic and static mode, respectively. Based on a series of experiments the most effective bacterial strains were Acinetobacter radioresistens and Arthrobacter chlorophenolecus, which were selected and used for a more comprehensive study of bioremediation of chlorophenol derivatives (2-chlorophenol, 4-chlorophenol and 2.4-Dichlorophenol) and tested in dynamic mode and static mode. It was shown that the bioremediation took place significantly slower in static mode compared to dynamic mode. The bioremediation process in an open system took place 3-4 times faster compared to a model system (sterile conditions), which is a positive sign, pointing to the successful application if we need to transfer the technology to pilot scale and then to industrial scale. Bioremediation efficiency of 3D bioreactors was measured using phenol, methylphenols or chlorophenol spiked river water or waste water (municipal wastewater from a wastewater treatment in Hailsham, UK and Kosice, Slovakia). We demonstrated that prepared 3D bioreactors could be used for bioremediation of a complex mixture (phenol and chlorophenols) of contaminants resulting in low energy cost purification of water. Overall 130 experimental set ups in triplicate were performed to optimise bioremediation parameters and select optimal composition for detailed investigation. A low content of polymer in the structure makes disposal easier after its use and this is therefore a greener technology. The bioremediation system can be successfully applied for phenol concentration up to 300 ppm.
Advantages of the developed technology is the absence of the separation step of bacteria from water after the bioremediation step, a possibility to reuse material a number of times, without the need of additional use of chemicals, bacteria are non-pathogenic and therefore the water can be safely discharged to environment without additional purification. The material can be reused at least 10 cycles without decline of the bioremediation efficiency. There is no need for the presence of additional source of carbon in water to proceed the bioremediation process.
The optimised method of production of material with a high number of live immobilised bacteria, low polymer content and controlled porosity is a promising means for development of novel materials based on live/or enzymatically active bacterial cells for various environmental, biotechnological, and medical applications. This will open opportunities for the development of production of known valuable products in a cheaper and easier manner as well as in an environmentally friendly way.
