Microfluidic-assisted fabrication of artifical microniches for bone marrow stem cells

Informations projet

MicroNICHE

N° de convention de subvention: 705163

DOI

10.3030/705163

Projet clôturé

Date de signature de la CE 4 Avril 2016

Date de début 1 Juillet 2016

Date de fin 26 Février 2020

Financé au titre de

• EXCELLENT SCIENCE - Marie Skłodowska-Curie Actions

Coût total

€ 239 191,21

Contribution de l’UE

€ 239 191,20

Coordonné par

AGENCIA ESTATAL CONSEJO SUPERIOR DE INVESTIGACIONES CIENTIFICAS
Spain

Periodic Reporting for period 2 - MicroNICHE (Microfluidic-assisted fabrication of artifical microniches for bone marrow stem cells)

Période du rapport: 2018-07-01 au 2019-06-30

Résumé du contexte et des objectifs généraux du projet

This project aims at the generation of an artificial 3D cell structure towards the recapitulation of the hematopoietic stem cell niche (SCN). Hematopoietic stem cells (HSC), a type of bone marrow stem cells (BMSCs), alone cannot be expanded in vitro. The microenvironment in which these cells reside is known as stem cell niche and its this environment which maintains them in a quiescent state . A realistic approach of the stem cell niche would require to engineer a biomimetic 3D-microenvironment, and then to develop artificial microniches with the key functional features reconstructed. High-throughput microfluidic technology offers a suitable technology however adaptation to accommodate adult stem cells (ASCs) in artificially fabricated niches remains still a challenge. Our route to micro engineer these cell constructs by droplet microfluidics offers the possibility of using various biomaterials and the maintenance of the encapsulated cells through the use of passive forces as technology for generating multi-layered hydrogel cell constructs.

The main objective of the project is the microfluidic reconstruction of an artificial SCN. For this approach, a droplet-based microfluidic technique is proposed in which a bone marrow stem cell (BMSC) microniche with tunable size, material and topography will be developed. Two physical requisites would be necessary to reconstruct normal HSC function in a artificial stem cell niche, the control of the niche geometry, and the functional reconstruction of the artificial SCN in a mechanically adapted support. These requisites are considered in both presented models comprising various layers of biocompatible hydrogels containing MSCs and HSCs.

This approach for the artificial reconstruction of these niche components represents an efficient method to simulate the in vivo situation of HSCs with the goal to study stem cell behavior in vitro under controlled conditions. This tailored coating of an inner hydrogel core extendable to a third coating layer represents a promising technology to reconstruct more complex cell arrangements and mimic better the complexity of the stem cell niche.Therefore the presented device is a valuable and unique tool towards gaining insights in understanding the regulation factors influencing the stemness maintenance of HScs and more generally, in understanding stem cell behavior in 3-dimensional environments.

Travail effectué depuis le début du projet jusqu’à la fin de la période considérée dans le rapport et principaux résultats atteints jusqu’à présent

The work developed during this period is compiled in two work packages. Work package 1 is devoted to design, micro manufacture and optimize the proposed double layered hydrogel generation technology for several hydrogels, as well as the assessment of its suitability for cell encapsulation. This work was done for 12 months from 18/07/2016 to 18/07/2017. The experimental work developed during this period allowed the fabrication and characterization of different microfluidic platforms for a double layer hydrogel bead generation in different sizes able to generate beads in both alginate-alginate and alginate-Puramatrix composition.This period also included the development of a transportable device setup and a protocol of operation to both generate the layered hydrogel structures and transfer them into culture media for further studies.

A precise characterization of the empty hydrogel structures volume and shape using confocal laser scanning microscopy (CLSM) was also performed. Both empty and cell laden structures were characterized using a Confocal Microscope by testing of different fluorescent beads/markers on alginate to be visible under the requested set-up. Cell encapsulation viability assays were also performed in order to asses the good direction of the proposed methodology. Several cell concentrations, hydrogel scaffolds and cell types ( human Mesenchymal stem cells and human Hemaopoietic stem cells) were used.Life dead assays were performed on the extracted beads. Results of this initial research were promising as human Mesenchymal stem cells were maintained and cultured for three days with high viability, and human Hematopoietic stem cells were maintained after encapsulation, suggesting that the platform can provide a novel and useful tool for the further studies to be carried out on the third year.

The work package 2 pursues the delivery of a functional high-throughput microfluidic platform to construct multi-layered microstructures by droplet technologies based in WP1. This work was done from 01/08/2017 to date.
In this task, a new microfluidic design and operational method has been developed, upgrading the previously manufactured two layered device to an additional third layer.As a result of this research, two different microfluidic geometries have been designed, manufactured, tested and characterized, and three layered beads in alginate-alginate-Puramatrix hydrogel have been successfully generated. Viability of this structure for stem cell encapsulation was performed successfully enclosing human Mesenchymal stem cells.

Progrès au-delà de l’état des connaissances et impact potentiel prévu (y compris l’impact socio-économique et les conséquences sociétales plus larges du projet jusqu’à présent)

To date, a reliable microfluidic fabrication technology for high-throughput production of SCNs for ASC culture is still lacking. Among the available technologies, droplet-based microfluidics owns the unique ability to encapsulate cells into templated matrices, although current use is limited to co-culture in droplets. There are some reports on a double encapsulation system using laminar co-flows, however, these methods do not offer control over the layer size and are not easily scalable. To date, it does not exist yet any platform for the generation of multilayer hydrogel capsules in a high throughput manner allowing a tunable construction of layers by passive forces. Therefore, the proposed technology represents an advance in its field as a novel method to generate multi-layered hydrogel beads suitable for adult stem cell encapsulation.

The expected results until the end of the project include the transfer to Europe the MicroNICHE technology developed in USA. The platform will be assessed for different cell types and concentrations. First, a HSC-niche proof-of-concept will be assessed using endothelial cells, covered by mesenchymal cells, which in turn will be covered by human hematopoietic precursor cell lines. A second proof-of-concept with primary HSCs will be also attempted.It is expected that HSCs stemless will be maintained successfully for several days on the proposed structures.

The possibility to deliver a MicroNICHE platform for improved culture of Bone Marrow Stem Cell (BMSC) products will mean an important step forward for the interest of the health of the European population. The completion and succeed of MicroNICHE as a model of stem cell niche will represent a paradigm shift in cell Technology and Regenerative Medicine, opening new ways to understanding important physiological processes. Ex vivo expansion of human HSCs in the proposed MicroNiche structure could also represent a new perspective in HPT. The developed and versatile technology which has been designed towards the recapitulation of the hematopietic stem cell niche, could also represent a novel tool to recreate other biological entities such as organs or tumours, opening insights in understanding in general 3D stem cell behavior.

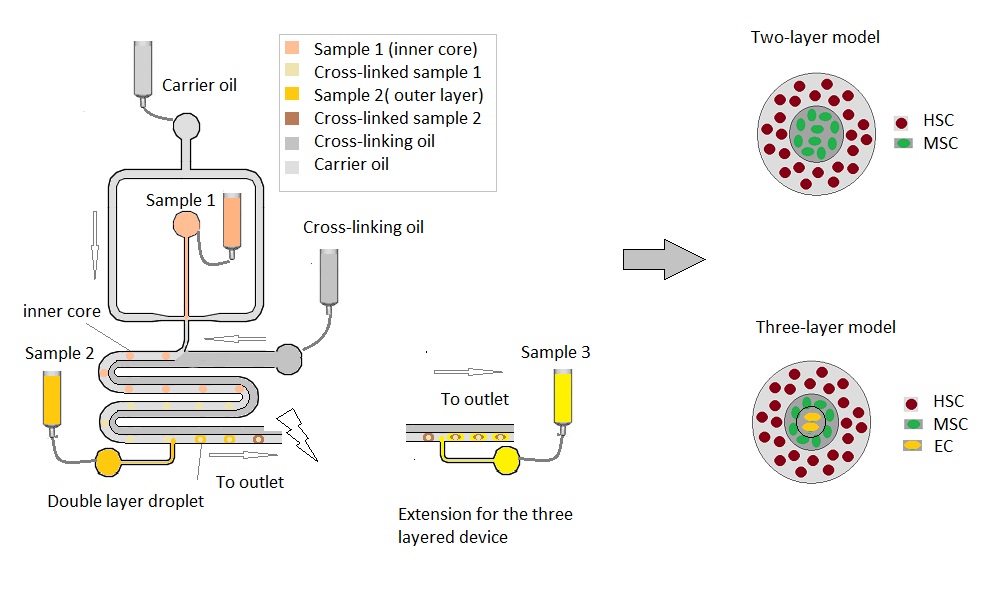

Schematic of the Microniche platform
