Periodic Reporting for period 4 - DUST (Data Assimilation for Agent-Based Models: Applications to Civil Emergencies)

Período documentado: 2022-07-01 hasta 2023-12-31

Resumen del contexto y de los objetivos generales del proyecto

When developing computer models of human systems, there are many situations where it is important to model the individual entities that drive the system, rather than using aggregate methods that combine individuals into homogeneous groups. In such circumstances, the technique of ‘agent-based modelling’ has been shown to be useful. In an agent-based model, individual, autonomous ‘agents’ are created. These agents can be given rules or objectives that determine how they will behave in a given situation. They can also interact with each other and with their environment. In this manner it is possible to simulate many of the interesting outcomes that emerge as social systems evolve which might be missed using aggregate methods that do not account for individuals, or their interactions, specifically.

There is a drawback with agent-based models though; they cannot incorporate real-time data into their simulations. This means that it is not possible to use agent-based modelling to simulate systems in real time. Agent-based modelling is an ideal tool for modelling systems such as traffic congestion, crowd dynamics, economic behaviour, disease spread, etc., but it is limited in its ability to make short term, real-world predictions or forecasts because it is not able to react to the most up to date data.

The aim of this project was to develop new methods that will allow real-time data to be fed in to agent-based models to bring them in to line with reality. It leveraged existing ‘data assimilation’ methods, that have been established in fields such as meteorology, and tested how applicable the methods are when adapted for agent-based modelling. The main difficulty that the project encountered was that, due to the complexity of an agent-based model, very large numbers of individual models were often required to be run simultaneously. This requires extremely large amounts of computing power. Therefore the algorithms that were the most useful were typically those that could conduct data assimilation while running the smallest number of models.

The results of the project are largely methodological; it has adapted methods and has shown them to be capable of feeding real-time data into agent-based models at runtime. This has important implications for society because it means that new types of models, such as social ‘digital twins’, could be possible if sufficient computing power and data were available. Immediate future work for the project will be to start to implement the methods in real situations.

Trabajo realizado desde el comienzo del proyecto hasta el final del período abarcado por el informe y los principales resultados hasta la fecha

The project largely focussed on methodological development, with some preliminary empirical applications in later stages. It adapted a number of methods that are commonly used in other fields and has tested how well they are able to allow us to conduct data assimilation for use agent-based models. Specifically, we looked at techniques called Particle Filters, Unscented Kalman Filters and Ensemble Kalman Filters. We also developed an entirely new methods based on quantum field theory and created a way to build agent-based models that allows Markov Chain Monte-Carlo sampling to take place (this is a very efficient way to incorporate observational data).

There were a number of challenges that the project faced:

Firstly, agent-based models are extremely computationally expensive so can take a long time to run on a computer. Most data assimilation methods also require a large number of models to be run simultaneously, which significantly exacerbates the problem. Some of the methods, such as the Kalman Filter variants, required smaller numbers of models to be run simultaneously so these delivered the most useful results. In addition, we also looked at emulator/surrogate methods that should allow the full agent-based model to run more quickly, albeit at a lower resolution (rather than having individual agents in the model, we create aggregate approximations that behave as if they were made of individuals). We have tested Random Forests and Gaussian Process Emulators; both of which hold promise.

Another challenge is that data assimilation methods are typically designed for models with continuous variables (e.g. air pressure, wind speed, etc.) but agent-based models often have discrete variables (e.g. an agent’s age or their current life goals). Therefore we have adapted the standard approaches to allow the data assimilation methods to include categorical methods.

In the later stages of work the project has also begun to apply the new methods to a variety of different types of model to explore their use in different systems. These include crowding in busy public places, the spread of disease, and international policy diffusion. Future work will continue to develop these kinds of applications. In particular, the results of the project could make an important contribution in the area of ‘digital twins’ by allowing real-time agent-based models to become part of larger ‘twin’-like simulations.

Avances que van más allá del estado de la técnica e impacto potencial esperado (incluida la repercusión socioeconómica y las implicaciones sociales más amplias del proyecto hasta la fecha)

There are a few areas, in particular, where the project progressed beyond the state of the art.

- The application of the Particle Filter, Unscented Kalman filter and Ensemble Kalman Filter to the technique of agent-based modelling are novel. The refinements that the project made to these methods allowed us to better understand their advantages and disadvantages and enabled the project to move towards more complex simulations from a variety of application domains (crowding, disease spread, policy diffusion).

- As a way to better understand the uncertainty in agent-based models, and to calibrate them more efficiently before applying data assimilation, the project adapted methods from the field of Uncertainty Quantification. We showed that, with these methods, it is possible to systematically explore and identify the parameters that most significantly influence model outcomes. This approach not only improves the robustness of the predictions but also provides a deeper insight into the dynamics of the system being modelled.

- The project demonstrated that it is possible to use data assimilation algorithms to optimise agent-based crowding models in real time, and in particular the ability to simulate in a real environment (in the project we built a model based on Grand Central Terminal in New York City).

Two agents interacting in an environment

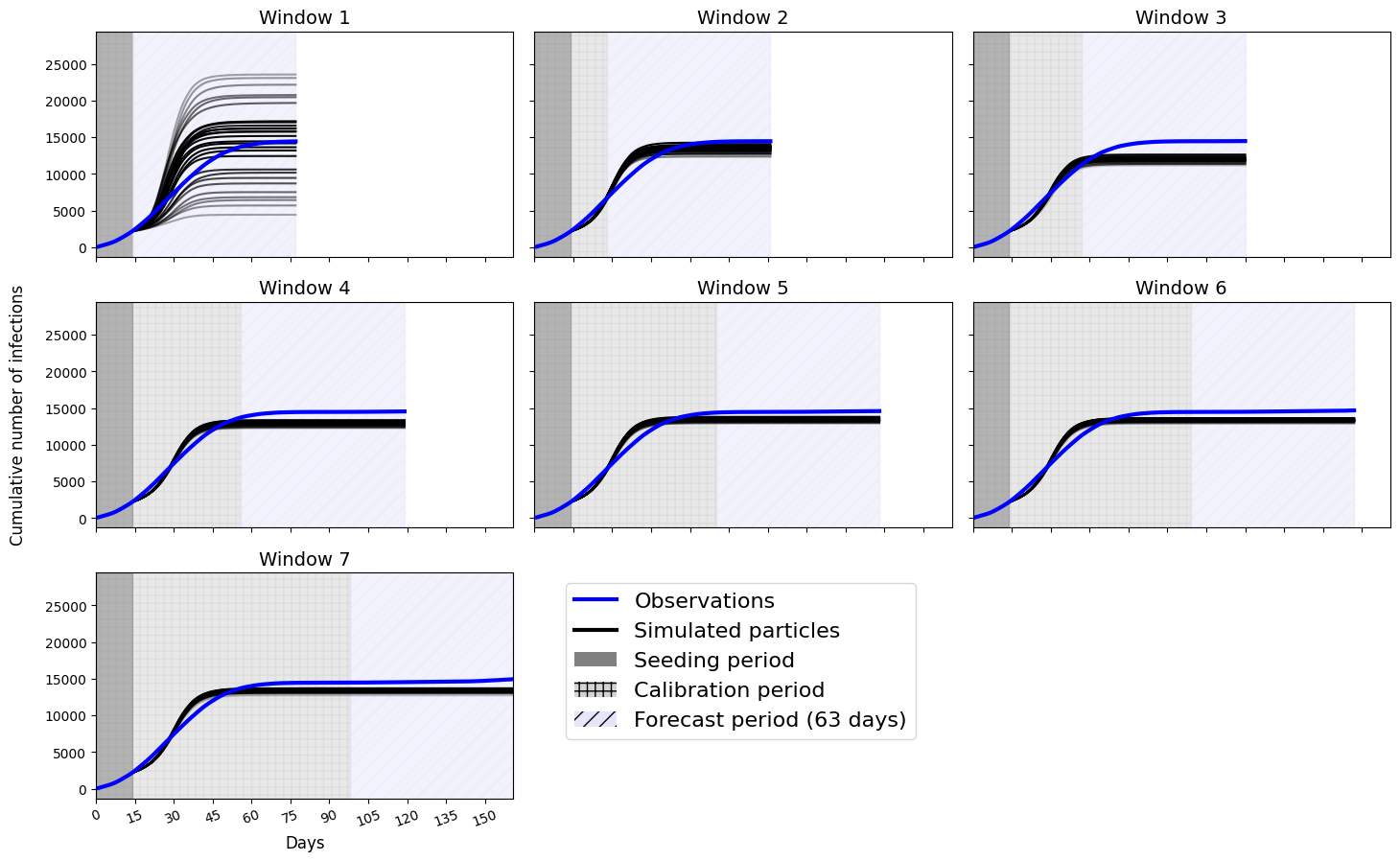

Reducing uncertainty in a simulation of disease spread

Success of emulators in making real-time crowd density predictions

Trajectories of travellers in Grand Central Terminal, NYC

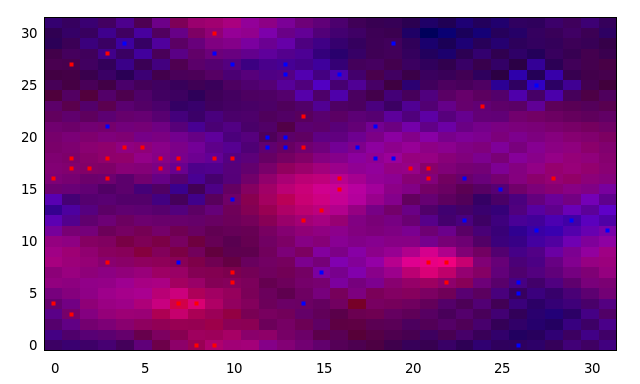

Estimates of the likely predator and prey locations after MCMC sampling

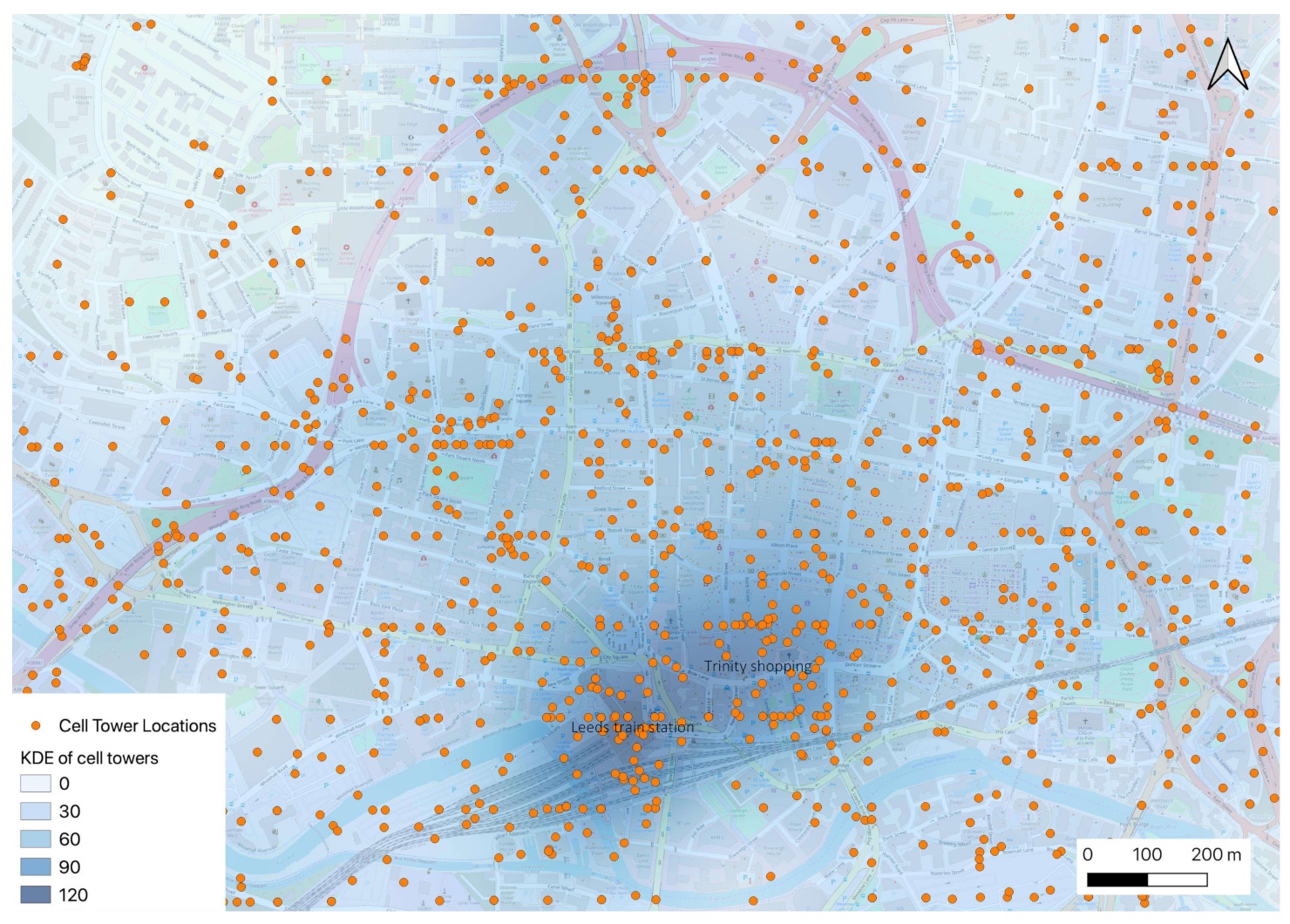

Locations of cell towers, as a proxy for the ambient population
