The Large Passenger Aircraft (LPA) IADP is about large-scale demonstration of technologies integrated at aircraft level in three Platforms:
Platform 1 “Advanced Engine and Aircraft Configurations” objective is to provide the development environment for the integration of the most fuel efficient propulsion concepts into compatible airframe configurations and concepts targeting next generation aircraft. The propulsion concepts considered range from Open Rotor engine architectures over advanced Ultra-High Bypass Ratio (UHBR) turbofans up to “hybrid” propulsion concepts for different levels of electrification of the power plant.
All support the CS2 objectives to reduce CO2 Emissions, Nitrogen Oxides (NOx) as well as contributing to the reduction of aircraft noise.
Platform 2 "Next Generation Fuselage, Cabin and Systems Integration” covered fuselage technologies for a typical single aisle commercial aircraft. The goal is to demonstrate an entirely new, advanced fuselage structural concept in alignment towards next-generation cabin-cargo architectures, including relevant aircraft systems with focus on industrial manufacturing including pre-installation and modularisation. The demonstrators are supported by cross-functional activities dealing with development of multifunctional technologies for elementary, automated structural testing and prediction tools for structural components under applied.
The technologies to increase energy efficiency and reduce environmental impact also fulfil future market needs and improve the competitiveness of future products.
Platform 3 “Next Generation Aircraft Systems, Cockpit and Avionics” includes advanced systems maintenance activities. It targets, for Large, Regional and Business aircraft:
Safety enhancement through resilience to pilot skills evolution, error tolerant automation, improved situation awareness, human monitoring;
Robust operations, reduced operational costs thanks to easier flight crew tasks, reduced workload, with optimized allocation between human and system
European aeronautical industry competitiveness enhancement via evolutive cockpit design, Low cost and fast upgradability, “Shared resources Platform” concept, Applicative cockpit, reduced lead- time, design for security.
Platform 1 “Advanced Engine and Aircraft Configurations” objective is to provide the development environment for the integration of the most fuel efficient propulsion concepts into compatible airframe configurations and concepts targeting next generation aircraft. The propulsion concepts considered range from Open Rotor engine architectures over advanced Ultra-High Bypass Ratio (UHBR) turbofans up to “hybrid” propulsion concepts for different levels of electrification of the power plant.
All support the CS2 objectives to reduce CO2 Emissions, Nitrogen Oxides (NOx) as well as contributing to the reduction of aircraft noise.
Platform 2 "Next Generation Fuselage, Cabin and Systems Integration” covered fuselage technologies for a typical single aisle commercial aircraft. The goal is to demonstrate an entirely new, advanced fuselage structural concept in alignment towards next-generation cabin-cargo architectures, including relevant aircraft systems with focus on industrial manufacturing including pre-installation and modularisation. The demonstrators are supported by cross-functional activities dealing with development of multifunctional technologies for elementary, automated structural testing and prediction tools for structural components under applied.
The technologies to increase energy efficiency and reduce environmental impact also fulfil future market needs and improve the competitiveness of future products.
Platform 3 “Next Generation Aircraft Systems, Cockpit and Avionics” includes advanced systems maintenance activities. It targets, for Large, Regional and Business aircraft:
Safety enhancement through resilience to pilot skills evolution, error tolerant automation, improved situation awareness, human monitoring;
Robust operations, reduced operational costs thanks to easier flight crew tasks, reduced workload, with optimized allocation between human and system
European aeronautical industry competitiveness enhancement via evolutive cockpit design, Low cost and fast upgradability, “Shared resources Platform” concept, Applicative cockpit, reduced lead- time, design for security.
Platform 1:
Nacelle components were tested for the integration of the UltraFan® engine in future Long Range aircraft concepts. The UltraFan® engine was tested in Rolls-Royce Derby facilities reaching full power and using 100% Sustainable Aviation Fuel.

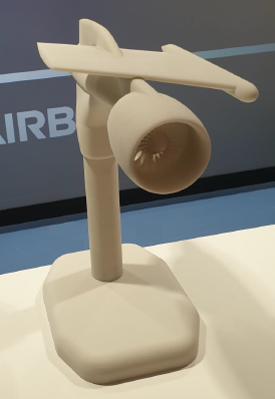

In the frame of Short-Medium Range (SMR) aircraft and UHPE integration activities, the consortium assembled the test rig for the more accurate aero-acoustic measurements ever planned in the world for large turbo fan engines.
The ground test campaign for active Vibration and Noise cancellation for bizjets was completed successfully and reached TRL6.
To relieve and balance the classical engine power offtake, the power sharing tests with Auxiliary Power Unit-ON for business jet and Long-range showed benefits.
For future SMR aircraft, nacelle components and power plant systems have been tested for Open Rotor engines, advancing towards TRL6.
Active Flow Control technologies demonstrated its efficiency to delay stall, increase aerodynamic performance, and optimize mass flow.
Boundary Layer Ingestion (BLI) technologies have been explored, confirming their interest for energy recovery and thrust power reduction.
The Cross Demonstrator Capabilities project developed advanced numerical and experimental methods for various propulsion systems.

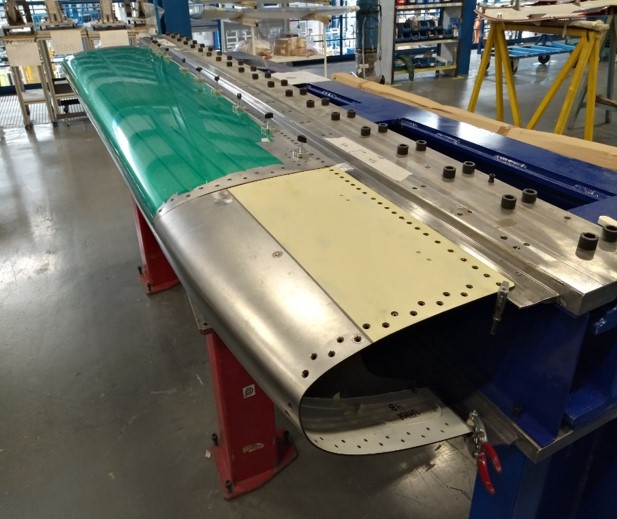

Hybrid Laminar Flow Control (HLFC) on Horizontal Tail Plane (HTP) reached TRL6, enlarging knowledge on its specific manufacturing requirements.
TRL4 was reached for HLFC on Wing.
For the Natural Laminar Flow on HTP for bizjets, the activities highlighted key technical solutions on laminar assembly between the leading edge and the torsion box that could be utilized on a bizjet aircraft.
The Advanced Rear End demonstrator reached TRL6.

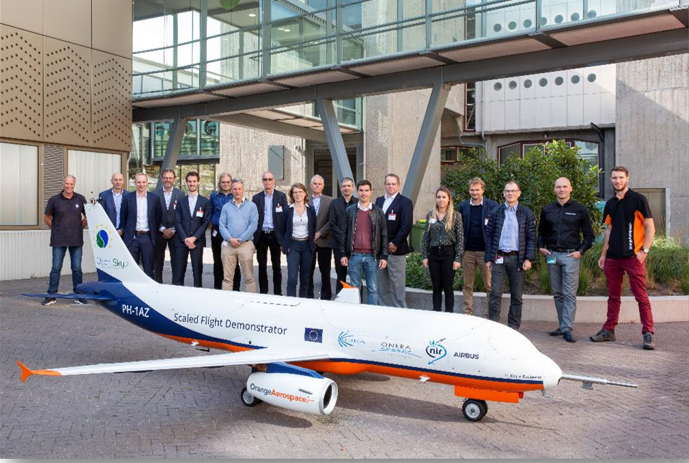

The Scaled Flight Test confirmed the value of such a test vehicle to assess new configurations while optimizing flight tests’ costs. The Distributive Electric Propulsion demonstrator (representing a SMR with six electrical propellers) was flight tested. The final results are expected to confirm the interest of scaled flight demonstrators.
Finally, technology bricks to support future hybrid-electric propulsion architectures have reached TRL4, in particular the 2MW Hybrid Electric Propulsion ground demonstrator.
Platform 2:
For the Multifunctional Fuselage demonstrator an 8m thermoplastic large scale innovation platform referring to a typical single aisle commercial aircraft showed a 10% weight reduction and neutral recurring costs. Fuel burn CO2 emissions could be reduced between 100 and 540kg for one typical single aisle flight depending on the chosen combination of technologies.
Customizable Pax Service Unit, Universal Cabin Interface and Energy Optimized Cabin achieved TRL4. Automated Cabin & Cargo Lining and Hatrack installation methods achieved TRL5. Environmentally Friendly Fire Protection, Platform concept and Printed Electrics achieved TRL6.
The New Center Fuselage demonstrator has been stopped at TRL2 maturity.
Innovative Materials Modelling Thermoplastic Composites reached TRL3, Metallics TRL4. Structural Health Monitoring/ Integrated Damage Detection and Fatigue Digital Twin reached TRL6.
Platform 3:
The DisCo demonstrator marks the first step towards a LPA with unprecedent levels of safety, operational efficiency, and cost-effectiveness.
Beyond the confirmation of the expected benefits it will play a major role as a development platform in future avionics research and technology programs.
The Regional Aircraft Active Cockpit Demonstrator showed its efficiency in providing a pilot workload reduction of 25%.
The Enhanced Business Jet Cockpit confirmed significant potential benefits in terms of safety and competitiveness.
The demonstrator for Maintenance optimisation with digitalisation proved it is possible to move from a "paper secured" maintenance to a more secured, faster maintenance digital tool to support day-to-day or urgent unscheduled maintenance tasks. This reduces the delays in dispatching an aircraft, and optimises the scheduled maintenance.
