Multimodal Sensory-Motorized Material Systems

Información del proyecto

MULTIMODAL

Identificador del acuerdo de subvención: 101045223

DOI

10.3030/101045223

Fecha de la firma de la CE 23 Noviembre 2022

Fecha de inicio 1 Enero 2023

Fecha de finalización 31 Diciembre 2027

Financiado con arreglo a

• European Research Council (ERC)

Coste total

€ 1 998 760,00

Aportación de la UE

€ 1 998 760,00

Coordinado por

TAMPEREEN KORKEAKOULUSAATIO SR
Finland

Periodic Reporting for period 1 - MULTIMODAL (Multimodal Sensory-Motorized Material Systems)

Período documentado: 2023-01-01 hasta 2025-06-30

Resumen del contexto y de los objetivos generales del proyecto

The next frontier in soft materials research is the integration of life-like features into synthetic materials. The materials in use today are static and passive, with their properties fixed upon fabrication. The materials of tomorrow are dynamic and active, much like living organisms. These advanced materials will exhibit adaptive behavior and interactive functions in response to processing signals received from the environment.

The paradigm shift described above is actively explored using various materials concepts. MULTIMODAL addresses this challenge using shape-changing liquid crystal networks (LCNs) that undergo controlled, untethered motions in response to different stimuli. Inspired by biological sensory-motor functions, we will develop materials capable of perceiving multiple environmental cues and responding to them through controlled motor functions – shape change or locomotion. These materials will be “trained” to strengthen upon repeated activation, “heal” when damaged, and mechanically adapt to different environments. They will be utilized in designing soft robots with autonomous and interactive functions.

Technological disruptions often stem from advancements in materials development and fabrication technologies. Paradigm shifts on how materials are perceived can profoundly impact society, well-being, and our understanding of the world. Materials that “learn from life”, embodying functions akin to intelligence of living systems, such as those developed in the MULTIMODAL project, will play an important role in this transformation.

Trabajo realizado desde el comienzo del proyecto hasta el final del período abarcado por el informe y los principales resultados hasta la fecha

In the first two years of the project, our key focus areas have been: (i) developing dynamic liquid crystal elastomers (LCEs; loosely crosslinked LCNs) that leverage weak physical interactions to introduce new functionalities, such as shape memory and self-healing; (ii) creating photochemically activated, multi-responsive systems and exploring how energy transfer processes drive photochemical transformations; (iii) designing LCN-based robotic systems with multi-realm locomotion capabilities. Additionally, we have explored functional and dynamic surfaces, with a particular focus on photochemically activated dynamic hydrogels, which are yielding highly promising results.

Our studies have resulted in 17 published scientific articles, many in the most prestigious journals in our field (Science, Nature Materials, Advanced Materials, Angewandte Chemie International Edition). We are on a good track - some research areas, such as dynamic and supramolecular liquid-crystal elastomers and robotic constructs, are progressing as planned, while others, like dynamic hydrogels and processes driven by sensitized isomerization, have been unplanned and opened new avenues, as is expected in curiosity-driven research.

Avances que van más allá del estado de la técnica e impacto potencial esperado (incluida la repercusión socioeconómica y las implicaciones sociales más amplias del proyecto hasta la fecha)

We have made significant advancements beyond the state of the art in several areas:

1. Halogen Bonding in Dynamic Liquid Crystal Elastomers (Angewandte Chemie International Edition, 2023). This promising approach allows materials to respond to moderate energy inputs, such as heat from a human palm, and introduces self-healing properties. Looking ahead, we believe functionalization with halogen bonding to lead to liquid crystal elastomers without covalent crosslinking, an important step towards recyclability and reprocessing.

2. Multiresponsive and Multifunctional Actuators. We developed photochemical actuators that respond to light and magnetic fields (ACS Applied Materials & Interfaces, 2025), and light and humidity (Journal of Materials Chemistry B, 2024). We also designed systems that integrate shape memory programming with reversible actuation (Advanced Functional Materials, 2024) by combining permanent covalent and dynamic supramolecular crosslinks. Future work will extend these design principles to cholesteric liquid crystal elastomers to create materials with dynamic color-changing properties.

3. Light-Driven Toroidal Structures for Microscale Swimming (Nature Materials, 2024). Movement in viscous environments poses a significant challenge for microscopic organisms, as highlighted by Purcell’s Scallop Theorem. We introduced a solution to this challenge, toroidal LCN structure that leverage zero-elastic-energy-modes (ZEEMs) to achieve autonomous locomotion in various environments. These ZEEM-driven LCNs can move toward or away from light, whether on solid surfaces or in liquid media. Most notably, powered by continuous optical input, they exhibit untethered swimming in the Stokes regime, navigating with remarkable agility in three dimensions at a Reynolds number as low as 0.0001.

4. Photoswitching via Sensitized Isomerization (Science, 2023). One of the major challenges in photoswitchable compounds is the reliance on UV light to control molecular and material properties. In a collaboration led by Prof. Rafal Klajn, we developed an indirect sensitized isomerization method that eliminates this limitation, enabling efficient photoswitching with any visible, or even near-infrared, light. We recently integrated this approach, termed Disequilibration by Sensitization under Confinement (DESC), into polymers (unpublished), aiming to use low-energy light to precisely control their structure and functionality.

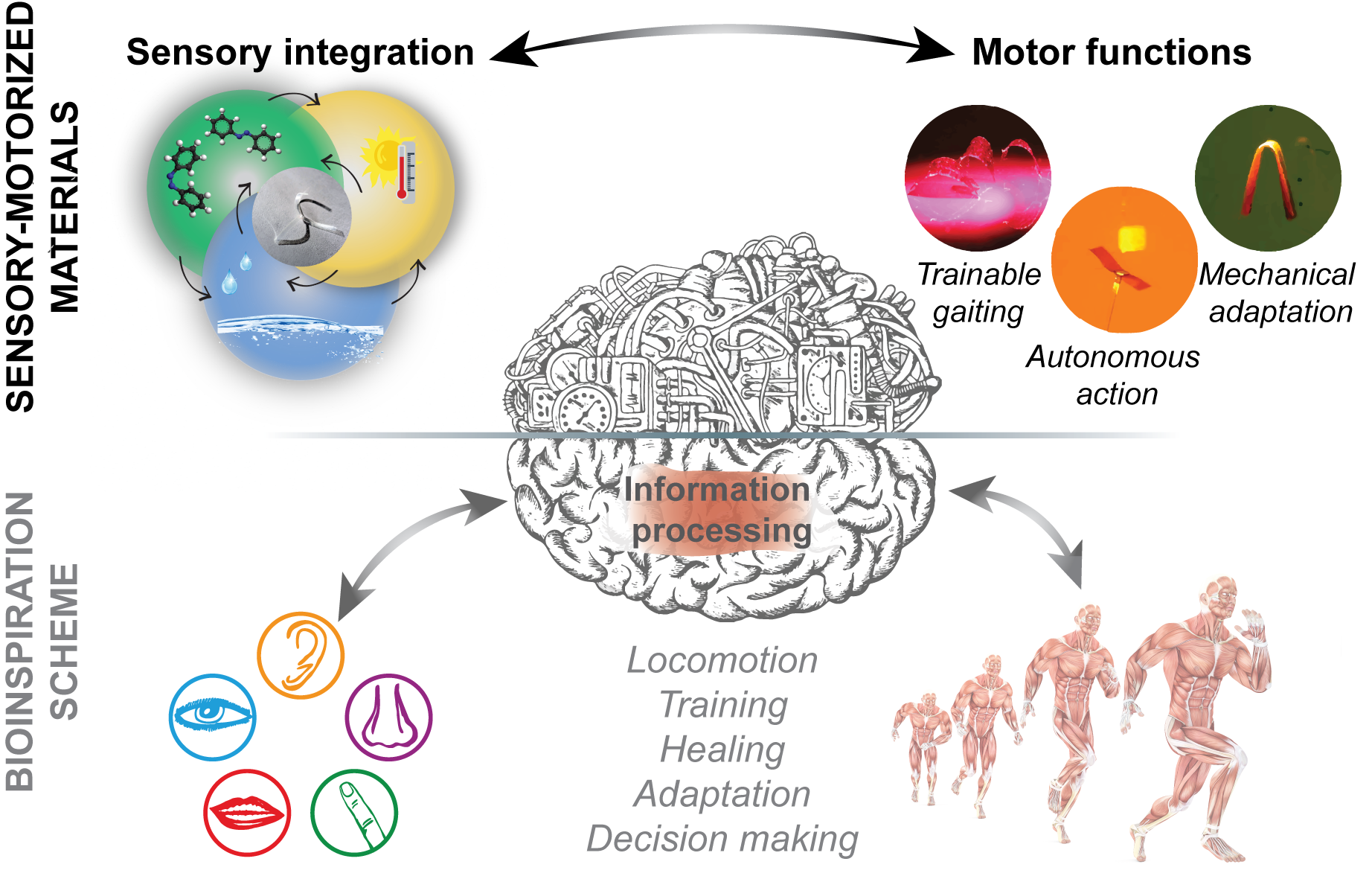

Summary figure of the MULTIMODAL concept
