Advance Nacelle Aerodynamic Optimisation

Periodic Reporting for period 3 - ANACO (Advance Nacelle Aerodynamic Optimisation)

Período documentado: 2021-11-01 hasta 2022-11-30

In 2001, the Advisory Council for Aviation Research and Innovation in Europe (ACARE) published the ‘Vision’ for 2020, setting targets for reductions in aircraft emissions. Current powerplant development is contributing through increased engine bypass ratio, propulsive efficiency and operation at reduced specific thrust, a major factor in the design of next generation Ultra-High Bypass Ratio (UHBR) engines including Advance and Ultrafan®. Efficiency reductions arising from increased fan diameter, cowl size, weight and aerodynamic drag may be mitigated by multi-point, multi-objective optimisation (MOO) methods to minimise nacelle drag.
The ANACO project objectives support this mitigation:
1. Design and develop short, slim nacelle designs for the UltraFan® type engines.
2. Apply optimisation techniques in the multi-objective, multi-point design space to generate candidate geometries
3. Down-select conventional and compact optimum designs for validation for long range and medium range applications
4. Develop and expand existing experimental test techniques to aid verification of the identified design optima
5. Design, manufacture and test the optimum geometries to prove the effectiveness of the new designs
6. Measure suitability of the proposed designs by simulation of installed configurations - full-scale CFD investigation and wind tunnel (WT) test feasibility study
7. Validate design and computational methods for compact nacelles using improved experimental data
8. Establish design guidelines for new nacelle configurations based on synthesis of computational and experimental data.
Overall, the ANACO objectives have been achieved. For long range applications, compact nacelle designs have been successfully optimised with both predicted and measured reductions in nacelle drag which will be beneficial to future UHBR engines. Based on these validated designs, simulations showed that these compact nacelles would also provide cruise fuel burn benefits when integrated with the airframe.
Five technical work packages (WP) addressed the project objectives.
WP1 addressed the multi-point, multi-objective design and optimisation of compact nacelles. A family of axisymmetric nacelles for long and medium range operation was generated in order to develop the design tools and identify the main aerodynamic sensitivities. The automated process, using linked tools including in-the-loop computational fluid dynamics (CFD), was controlled by genetic or particle swarm algorithms operating on multiple objectives to identify design optima. The optimisation method was extended to 3D non-axisymmetric configurations (Fig 1), paying attention to off-design conditions. This enabled the down-selection of four designs (long and medium range, conventional and compact configurations) for wind tunnel (WT) test. WP1 enabled ANACO objectives 1, 2 and 3 to be achieved.
WP2 advanced experimental techniques for validation of predicted drag. ANACO used the ARA Transonic Wind Tunnel (TWT) and Z30 isolated nacelle test rig (Fig 2), enabling external drag measurement of sting-mounted models using a rotating wake rake. CFD analyses facilitated optimised model integration with a new, profiled sting (Fig 3) and examined off design characteristics (Fig 4) and rig loading. CFD-based experimental uncertainty analyses aided improvement of the drag rake design and drag correction methods and identified a requirement for improved ingested mass flow calibration. Novel test techniques were also developed including boundary layer particle image velocimetry (PIV) enabling computation of surface shear stress. A new small scale rig (Fig 5) was used for initial shear stress measurement trials including PIV. WP2 also showed, using a numerical study, that generation of a pressure field of the required fidelity using a swept prismatic wing was not feasible. WP2 enabled ANACO objective 4 to be achieved.
WP3 focused on the detailed design and manufacture of the four down-selected nacelle model geometries. Each model was instrumented for the measurement of surface pressure with one model also having unsteady pressure and surface shear stress sensors (Fig 6). Aided by CFD analysis, a bespoke air meter for Z30 rig mass flow calibration was designed and manufactured in support of the main test campaign.
WP4 addressed the preparation and WT test of the Z30 rig and nacelle models. The rig was refurbished and modified following the recommendations of WP2. An initial shakedown WT test was conducted to de-risk the test systems and methods, also supporting the revision of data correction algorithms. The main test entry included rig calibrations (Fig 7) and aerodynamic characterisation of the 4 nacelle geometries (Fig 8) at cruise and off-design conditions, applying novel measurement techniques to one model (Figs 9, 10). WP3 and WP4 enabled objective 5 to be achieved.
WP5 focused on the validation of compact nacelle design methods based on the transonic WT configuration and experimental data, the assessment of the aircraft installed configurations and the generation of design rules for compact nacelles. CFD was used to simulate aircraft installed nacelle configurations for both long and medium range applications (Fig 11). CFD guided the experiment design and CFD simulations provided numerical results for direct comparison with the measurements (Figs 12-14). CFD was used to predict compact nacelle drag benefit when installed on the WT test rig (Fig 3) and on a representative aircraft wing (Fig 15). Advanced methods were developed to map the design space and enable the optimisation of aircraft installed nacelles. WP1 and WP5 together provided guidance on the design methods and design rules for compact nacelles. Objectives 6, 7 and 8 were achieved.
ANACO has provided opportunities for exploitation and dissemination. Experience gained from the experiments, for example in the industrial application of PIV, has been applied to subsequent WT test campaigns. Future Z30 tests will benefit from improved measurement quality and model-rig integration. The new nacelle design process has been used in the subsequent JU ODIN project. Results demonstrating the success of this process and the state-of-the-art numerical design tools developed during ANACO have been disseminated via academic conferences and journal papers.
ANACO has advanced the state of the art in several areas. Recent advances in MOO, CFD drag prediction, and parametric geometry definition enabled the investigation of new UHBR type nacelles. Tools for nacelle optimisation have been used with a variety of computational approaches and identified the viable design space for future UHBR nacelles. Comprehensive approaches have been developed for the aerodynamic design and analysis of podded underwing aero-engines. CFD has been used to optimise nacelle designs, assess aircraft installed performance, and support development of the WT test. Methods for the optimisation of installed civil UHBR aero-engine nacelles, as well as advanced multi-fidelity techniques, have been successfully developed.
Existing and novel experimental measurement techniques have been developed, advancing the industrial capability. WT tests have enabled the validation of predicted nacelle drag benefits, supporting generation of design rules to enable the evolutionary improvement in UHBR nacelle design and the success of European industry in this field.
Figure 10: Nacelle boundary layer velocity profile measurement using PIV

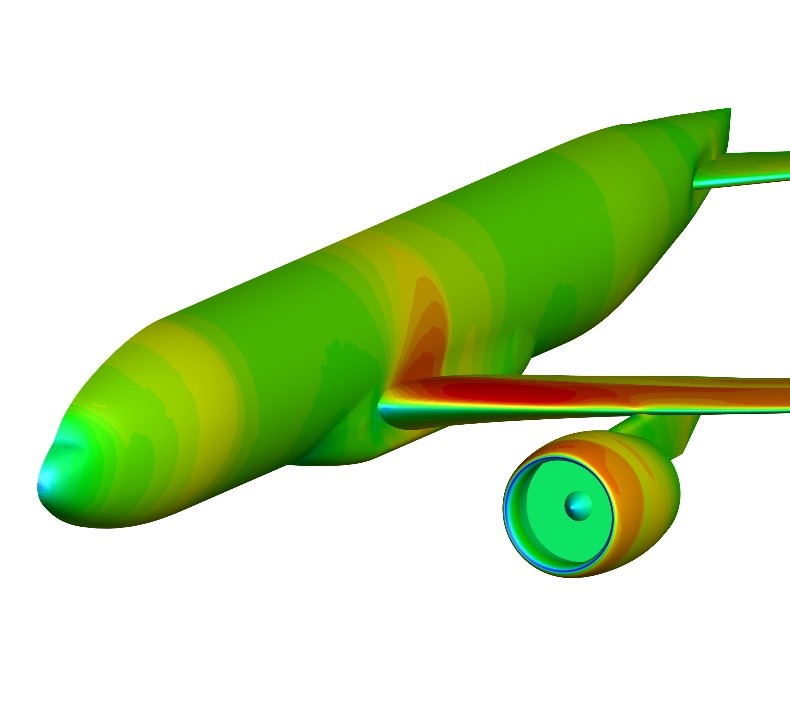

Figure 15: Long range compact nacelle, aircraft-installed CFD solution at mid-cruise
Figure 2: Long range compact nacelle and profiled sting installed on Z30 test rig in TWT, CAD model

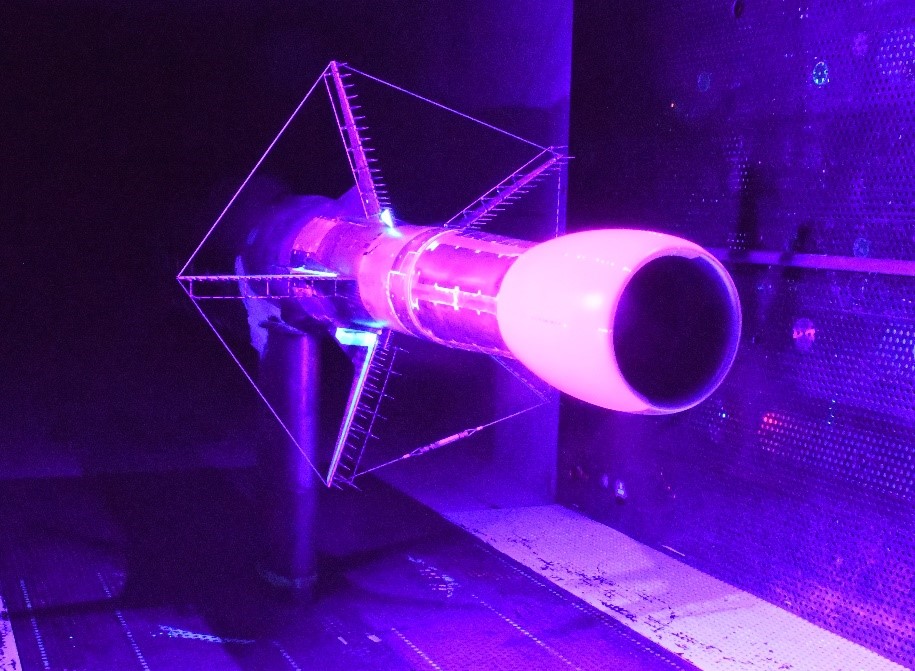

Figure 9: Nacelle surface pressure measurement using pressure sensitive paint
Figure 1: Long range compact isolated nacelle, CFD solution at mid-cruise condition
Figure 3: Long range compact nacelle and profiled sting on Z30 test rig, CFD solution at mid-cruise

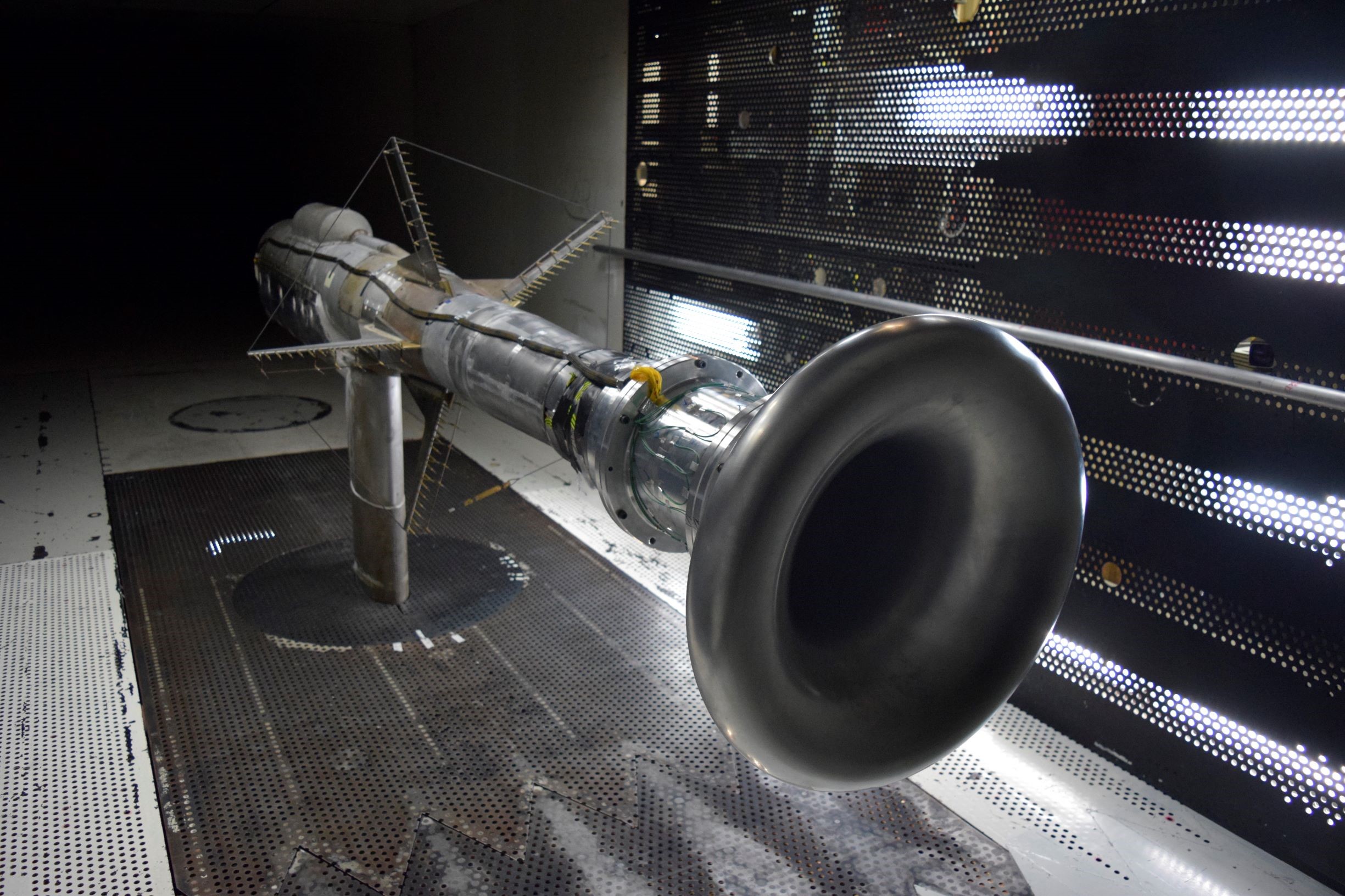

Figure 7: Ingested mass flow calibration of the Z30 rig using bespoke ANACO air meter

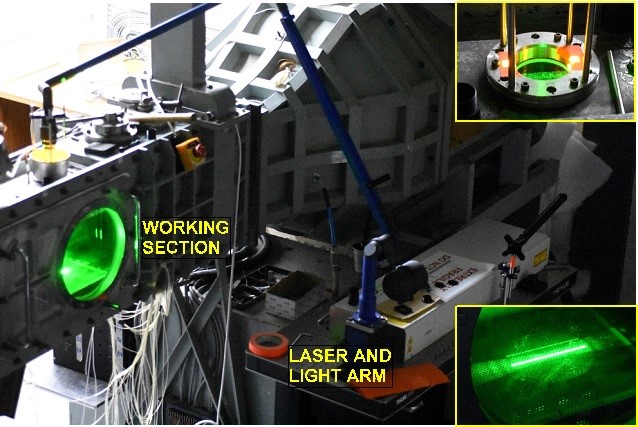

Figure 5: Boundary layer PIV trials conducted in the ARA Z4T small scale transonic wind tunnel

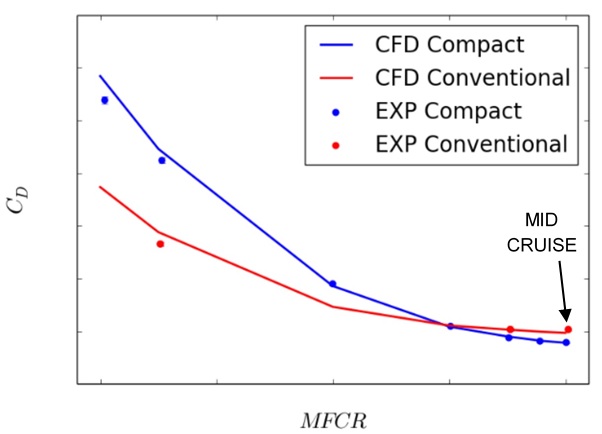

Figure 14: Sample CFD results validation; compact nacelle drag benefit observed at cruise MFCRs

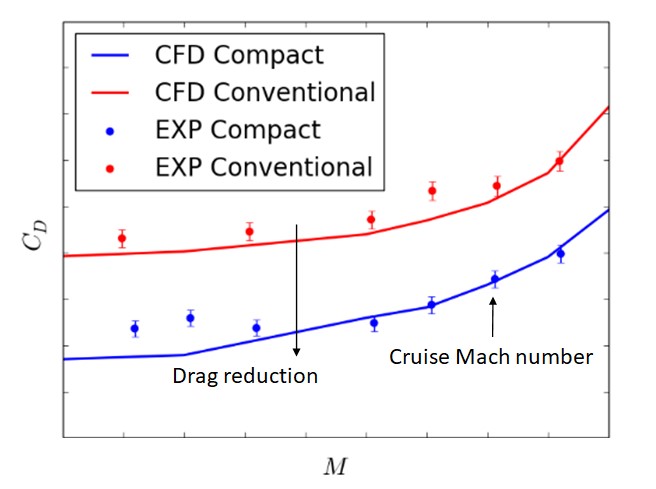

Figure 13: Sample CFD results validation; transonic drag rise, long range nacelles, mid-cruise MFCR
Figure 4: Sting-mounted windmilling nacelle. DDES shear stress snapshot; unsteady separation in blue
Figure 12: Sample CFD results validation; top line isentropic Mach number distribution at mid-cruise
Figure 8: ANACO nacelle model and upgraded Z30 rig undergoing testing in the ARA TWT

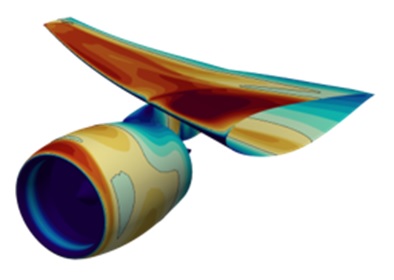

Figure 11: Compact nacelle installed on NASA-CRM for long-range applications, isentropic Mach number
Figure 6: Miniaturised, bespoke surface shear stress sensor for ANACO nacelle model
