Upscaling and Market Introduction of Simultaneous Biogas Upgrading and Bio-Succinic Acid Production

Información del proyecto

NEOSUCCESS

Identificador del acuerdo de subvención: 950921

DOI

10.3030/950921

Proyecto cerrado

Fecha de la firma de la CE 7 Abril 2020

Fecha de inicio 1 Junio 2020

Fecha de finalización 30 Noviembre 2023

Financiado con arreglo a

• Horizon 2020 Framework Programme

Coste total

€ 2 441 266,25

Aportación de la UE

€ 1 916 280,48

Coordinado por

IGNIS H2O SL
Spain

Periodic Reporting for period 4 - NEOSUCCESS (Upscaling and Market Introduction of Simultaneous Biogas Upgrading and Bio-Succinic Acid Production)

Período documentado: 2023-06-01 hasta 2023-11-30

Resumen del contexto y de los objetivos generales del proyecto

Succinic Acid (SA) is the most important multifunctional platform chemical for the industry with immense applications (bioplastics, polyurethanes, paints, etc.) but 95% of its production is petroleum-based. On a separate matter, biogas’ most valuable compound is Methane, used as renewable energy; but obtained by costly upgrading technologies, not yet fully widespread.

NEOSUCCESS is a Fast Track to innovation project with the goal of making commercially available an unique technology based on a semi-containerised plug-and-play technology, conceived to be integrated in biogas plants’ operational workflow, finally making the investment on biogas upgrading profitable as a result of its complementary BioSuccinic Acid exploitation.

Trabajo realizado desde el comienzo del proyecto hasta el final del período abarcado por el informe y los principales resultados hasta la fecha

NEOSUCCESS has coming to an end, recently finishing its last periof of the project (4th Reporting Period). The project’s timing is divided in four Reporting Periods (M1-M12; M12-M24; M24-M36; and M36-M42).

During the 1st Reporting Period, the project was about the scale-up and construction of the industrial unit. The website was launched and a Dissemination and Communication (D&C) plan was established. The market analysis activities were also started, together with the Intelectual Property (IP) and Data Management Plans, as well as defined the ethical requirements for the project.

During the second year (2nd Reporting Period) the team has finished lab scale and pilot scale trials, finished the industrial unit design (including the DownStreamin Process -DSP- improvement), built it and validated it under controlled conditions and there is more to follow.

During this 3rd Reporting Period the consortium has focused mainly on the operation and optimization of the industrial unit, both of the UpStream and the DownStream. Other tasks have also been advanced, such as the Business Plan and the Dissemination & Communication.

In these last 6 months (4th Reporting Period), the team has performed the final industrial trials on the DownStream and has carried out several demonstration/promotional activities of the technology with interested groups, as well as prepared some content for the training of interested parties. Thanks to this, the project has made contact and held ulterior meeting with an interested chemical company. Furthermore, the rest of the tasks have been finished and reported during these last months, such as the standardisation, Data analysis or Business Plan.

Avances que van más allá del estado de la técnica e impacto potencial esperado (incluida la repercusión socioeconómica y las implicaciones sociales más amplias del proyecto hasta la fecha)

Currently, SA and biomethane (BioM) production are separate industrial processes. We have developed NEOSUCCESS, the first technology worldwide that recycles and uses residual waste streams to simultaneously produce these two high-value products: BioM (>95%) from biogas to be used as a biofuel; and BioSA (>80%), a second-generation non-fossil alternative to SA. This is the first revolutionary biogas upgrading technology that binds CO2 into a valuable biochemical; highly reducing production costs and environmental footprint. Both Biogas Upgrading and BioSA markets have a double-digit growth, which strikes as a great opportunity for Europe to take a leap forward.

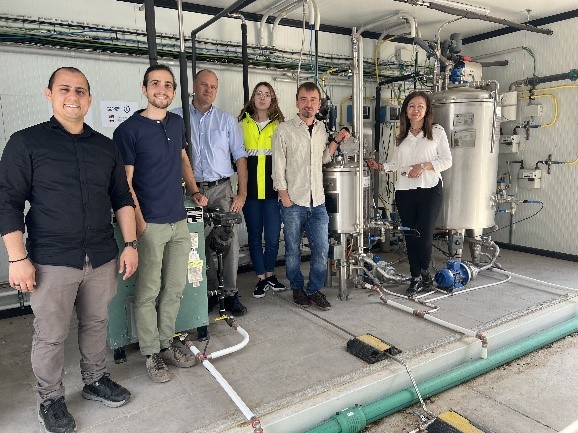

The NEOSUCCESS technology has been validated at lab and pilot scale with very positive results. It has also been designed and tested at an industrial scale, showing some deficiencies related to sterilisation, that can be easily re-adjusted and fixed. Thus, the NEOSUCCESS project shows that the technology is an alternative for the market and can be implemented, once enhanced.
