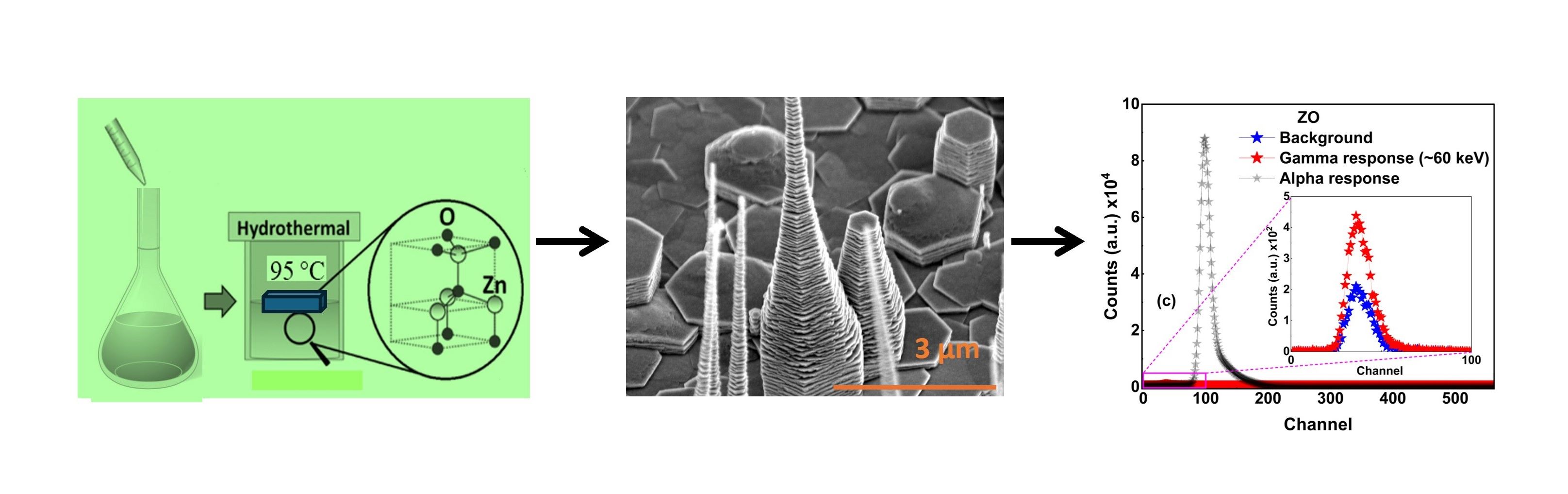

In this report period, ZnO nanoarrays were grown via a low temperature hydrothermal method. The effects of the additives involved in the growth procedure i.e. ammonium hydroxide and sodium citrate were studied in terms of the morphological, optical and the scintillation properties of the ZnO nanostructures. ZnO NRs grown on a silica substrate showed high quality structural and optical properties. The addition of sodium citrate was found to reduce defects significantly and correspondingly increased the intrinsic near-band edge (NBE) UV emission intensity at ~380 nm. Annealing in a 10% H2 + 90% N2 atmosphere was performed to obtain high quality nanostructures. Highly tapered NRs were obtained towards the end of the structure. Time growth studies were conducted to monitor the tapering process and the tapering effect on photoluminescence (PL) as well as reflectance spectra were presented. Tapered ZnO NRs showed excellent anti-reflection properties. As grown ZnO NRs were found to have high alpha particle responses. ZnO NRs were then doped with Al, Ga and In and the structural, optical and scintillation properties were monitored. It was seen that optical and scintillation properties were improved by doping ZnO NRs. Studies are now directed to the growth of vertically well-aligned dense ZnO NR arrays doped with 6Li, which will serve as radiators that the thermal neutrons will interact. In addition, simulation studies on optical and scintillation properties are in progress.
