Modelling nanoparticle transport in the extracellular matrix: improving drug delivery with ultrasounds

Informazioni relative al progetto

ModEMUS

ID dell’accordo di sovvenzione: 101062456

DOI

10.3030/101062456

Progetto chiuso

Data della firma CE 9 Giugno 2022

Data di avvio 1 Agosto 2023

Data di completamento 31 Agosto 2025

Finanziato da

• Marie Skłodowska-Curie Actions (MSCA)

Costo totale

Nessun dato

Contributo UE

€ 210 911,04

Coordinato da

NORGES TEKNISK-NATURVITENSKAPELIGE UNIVERSITET NTNU
Norway

Periodic Reporting for period 1 - ModEMUS (Modelling nanoparticle transport in the extracellular matrix: improving drug delivery with ultrasounds)

Periodo di rendicontazione: 2023-08-01 al 2025-08-31

Sintesi del contesto e degli obiettivi generali del progetto

Cancer remains the second leading cause of death in Europe, with 2.27 million new cases and 1.3 million deaths recorded in 2020. Despite advances in therapy, fewer than 1 % of systemically administered drugs reach solid tumours, limiting treatment effectiveness and increasing side effects. Nanoparticle (NP) drug delivery offers a promising strategy by exploiting tumour vasculature permeability, but achieving uniform NP distribution within tumour tissue remains a major challenge.

A key barrier is the extracellular matrix (ECM) — a dense network of collagen fibres and proteoglycans that hinders drug diffusion. Focused ultrasound (FUS), especially when combined with microbubbles, has shown potential to enhance NP penetration by generating mechanical effects such as acoustic radiation force and cavitation. However, the mechanisms driving these improvements are not fully understood, and the outcome depends on multiple interacting factors, including tumour pathology, ECM composition, NP properties, and FUS parameters.

This project addresses these challenges by developing a molecular modelling framework to predict NP transport through the ECM under FUS exposure. By correlating molecular-scale interactions with experimental data, the model will identify optimal NP designs and FUS protocols for enhanced delivery. The results are expected to accelerate the development of personalised, NP-based cancer therapies, supporting EU health priorities to reduce cancer mortality and improve patients’ quality of life.

Lavoro eseguito dall’inizio del progetto fino alla fine del periodo coperto dalla relazione e principali risultati finora ottenuti

We developed and applied a coarse-grained Langevin Dynamics simulation framework to investigate the molecular mechanisms driving ultrasound (US)-enhanced nanoparticle (NP) diffusion in polymeric hydrogels, serving as a model for the tumour extracellular matrix. The model captures the essential physics of NP motion within a polymer network under US exposure, allowing systematic exploration of how network retention strength and US amplitude influence transport.

Our simulations reproduce key experimental trends from the literature. For moderately or strongly retained NPs, US markedly enhances long-time diffusion via a “stick-and-release” mechanism, in which acoustic forces reduce NP–network contact times and promote escape events. This explains experimental reports of effective acoustic diffusion in agarose gels under continuous or high-duty-cycle US exposure. In contrast, weakly retained NPs show negligible enhancement, consistent with studies observing no improvement.

We further demonstrate that US exposure duration is critical: enhanced diffusion arises only when pulse lengths span multiple oscillation cycles, providing a mechanistic explanation for the absence of enhancement in low-duty-cycle conditions. Finally, we show that the specific physical model of US–hydrogel coupling strongly influences both the magnitude and character of NP transport enhancement, underscoring the importance of accurate modelling for treatment design.

Progressi oltre lo stato dell’arte e potenziale impatto previsto (incluso l’impatto socioeconomico e le implicazioni sociali più ampie del progetto fino ad ora)

This project provides the first systematic, molecular-scale framework linking nanoparticle–matrix interactions and ultrasound (US) parameters to transport enhancement in polymeric networks. Our findings identify NP retention strength and US exposure characteristics as the primary determinants of acoustically enhanced diffusion, offering a mechanistic explanation that reconciles previously contradictory experimental observations. This framework can guide the rational design of ultrasound-mediated drug delivery protocols in biological hydrogels and tumour extracellular matrix (ECM).

While our coarse-grained Langevin Dynamics approach enables controlled, bottom-up investigation, it necessarily simplifies the ECM as a homogeneous, periodic polymer network. Future work should incorporate structural heterogeneity, variable crosslinking, and patchy interactions to better capture in vivo conditions. Similarly, hydrodynamic effects are currently represented through friction terms, omitting long-range coupling between NPs, the network, and surrounding fluid; explicit modelling of these interactions will be important for predictive accuracy.
Thermal effects of US, excluded here via constant-temperature control, may influence in vitro systems but are expected to be physiologically regulated in vivo.

Addressing these aspects through extended modelling and targeted experiments will be essential for translating these insights into clinical strategies, supporting further research, experimental validation, and eventual integration into personalised nanomedicine delivery systems.

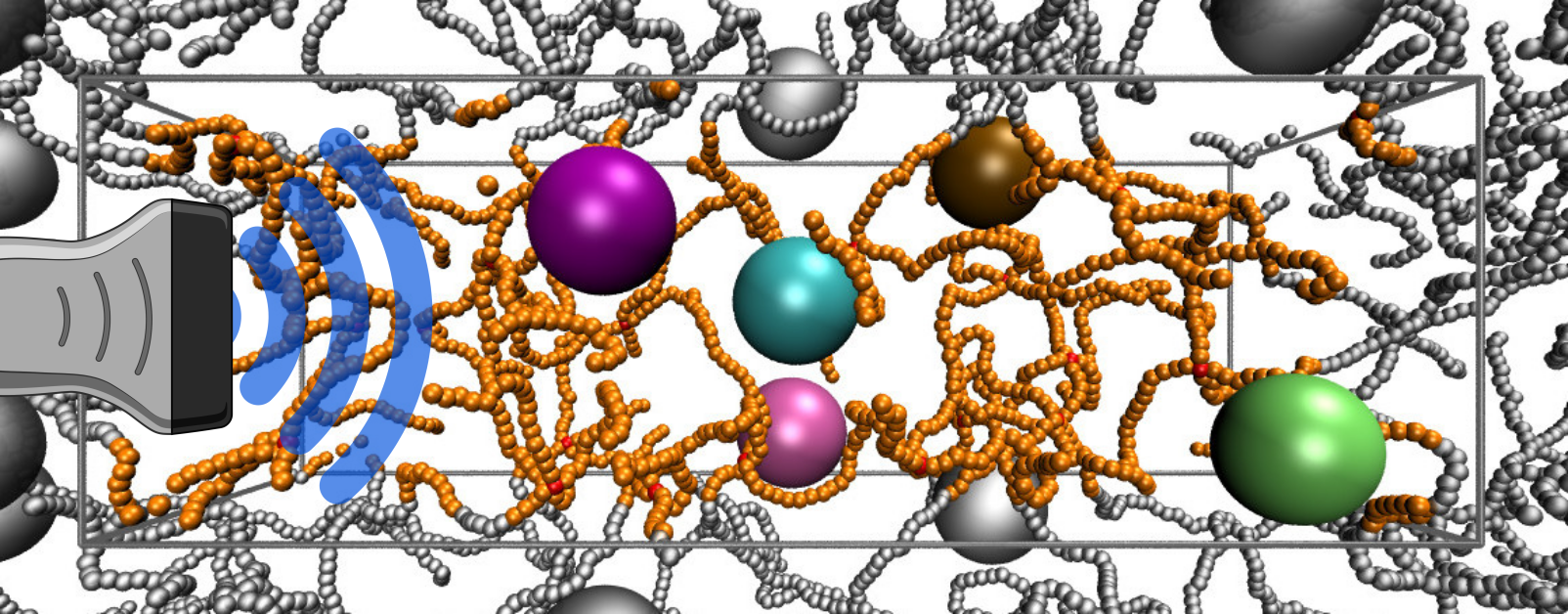

Simulation snapshot of nanoparticles diffusing in a hydrogel under ultrasound
