THE BiAR PROCESS: TRANSFORMING LOW-VALUE BIOMASSES INTO HIGHLY VALUABLE FOR ENERGY-RECOVERY FUELS

Informazioni relative al progetto

BIAR

ID dell’accordo di sovvenzione: 807140

DOI

10.3030/807140

Progetto chiuso

Data della firma CE 2 Febbraio 2018

Data di avvio 1 Marzo 2018

Data di completamento 30 Giugno 2018

Finanziato da

• SOCIETAL CHALLENGES - Secure, clean and efficient energy

Costo totale

€ 71 429,00

Contributo UE

€ 50 000,00

Coordinato da

INSER ENERGIA SRL
Italy

Periodic Reporting for period 1 - BIAR (THE BiAR PROCESS: TRANSFORMING LOW-VALUE BIOMASSESINTO HIGHLY VALUABLE FOR ENERGY-RECOVERY FUELS)

Periodo di rendicontazione: 2018-03-01 al 2018-06-30

Sintesi del contesto e degli obiettivi generali del progetto

BiAR is an innovative process that transforms low-value ash-rich biomass (sewage sludge and agro-forestry residues such as barks and rice husks) into ash-free biomass fuels for energetic use. The main objective of our current project BiAR is the industrial adaptation and scale-up of our Biomass Ash Removal pilot plant and its commercialization in the biomass industry, which is subject to a stringent legislation regarding ash content. Accordingly, we have assessed the BiAR process scale-up approach and design along with its KPIs and operational parameters definition. Also, we have considered further optimization towards validation.

Lavoro eseguito dall’inizio del progetto fino alla fine del periodo coperto dalla relazione e principali risultati finora ottenuti

In our feasibility study we have defined the scale-up, the main key parameters to be controlled and the optimization of sizing to attain optimized process conditions, the residence time of slurry inside the reactor and the filtration step.
For commercial deployment for our process complying for ENplus certification under ISO17225-2, pellet producers and associations have been identified as target users. We have defined our total addressable market providing us a market share of 1.40% of total EU-28 pellet production.
In our financial feasibility we have established that BiAR will be sold by licensing the process, the expected financial forecast and the estimated budget to reach the market.

Progressi oltre lo stato dell’arte e potenziale impatto previsto (incluso l’impatto socioeconomico e le implicazioni sociali più ampie del progetto fino ad ora)

The novelty of the BiAR process lays the complete conversion by solvolysis at moderate temperatures of ash-rich biomass and wastes to high-value ash-free pellets for energetic use. This is the only cost-efficient process able to separate inorganic from organics compounds at large scale.
Nowadays, the only method economically viable at industrial level to separate the inorganic compounds from organic compounds is burning. New emerging techniques are arising to reduce the biomass ash content; however, they are at an experimental stage. Due to the low percentages of separation, these techniques are not the solution for the efficient removal of ashes from biomass feedstocks. Moreover, none of these techniques are applicable to the range of biomass waste and residues types such as sludge and agro-forestry residues. As a result, ash-rich biomasses are currently being used ineffectively or still largely disposed. BiAR is the only economically viable process able to convert low value biomass waste and residues into highly value biomass for energetic use and with the lowest environmental impact.

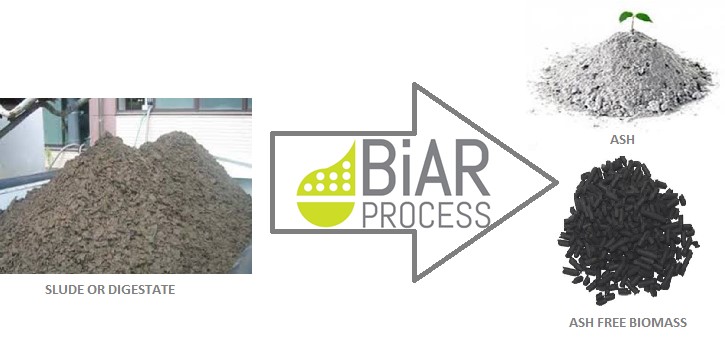

BiAR process: transforming low-value biomass into highly valuable for energy-recovery fuels
