Quick Disconnect System

Informazioni relative al progetto

QUICK

ID dell’accordo di sovvenzione: 821023

DOI

10.3030/821023

Progetto chiuso

Data della firma CE 18 Ottobre 2018

Data di avvio 1 Novembre 2018

Data di completamento 31 Ottobre 2022

Finanziato da

• SOCIETAL CHALLENGES - Smart, Green And Integrated Transport

Costo totale

€ 599 386,25

Contributo UE

€ 599 386,25

Coordinato da

THE UNIVERSITY OF NOTTINGHAM
United Kingdom

Periodic Reporting for period 2 - QUICK (Quick Disconnect System)

Periodo di rendicontazione: 2020-05-01 al 2022-10-31

Sintesi del contesto e degli obiettivi generali del progetto

The QUICK project will develop and demonstrate a novel, highly robust and reliable fault detection and mechanical isolation system to mitigate the risks of potentially highly dissipative failure modes associated with the high-performance electrical power generator technologies required for future energy-optimised aircraft.
The main objectives are:
- To define the initial requirements and a preliminary architecture of the QUICK system
- To identify and define the concept for the shaft coupling and the overall actuator, through the results of initial mechanical analyses and studies that include characterisation and considerations of available materials
- To define and develop the pre-final concept of the disconnect system, known as Version 1 prototype, including all the accessories, sensors, signal processing and data acquisition systems, all on the basis of reliability analysis
- To accurately model and simulate the behaviour of the whole set-up in order to assess all the operation effects are in play
- To define the actuation and coupling aspects of the QUICK system based on the results of a full mechanical and operational analyses
- To prototype, test and validate a full version of the whole QUICK system in a laboratory environment
- To integrate a working prototype into a realistic environment and thus be able to test and validate the concept in a realistic environment

Lavoro eseguito dall’inizio del progetto fino alla fine del periodo coperto dalla relazione e principali risultati finora ottenuti

Negotiation of the content of the project took place at the Kick-Off meeting in November 2018.
Product and system requirements were captured leading to a successful delivery of the Preliminary Architecture Definition in May 2019.
The system model was built leading to a successful delivery of Basic System Model Report in June 2019.
The Dissemination plan was delivered in June 2019.
All the requirements related to the final design of the first QUICK concept (V1) were completed which led to the successful delivery of the Critical Design Review (CDR) report.
The CDR documentation was completed in September 2020 and the review was conducted and signed off with the TM in November 2020.
The simulation and analysis report was completed and submitted in April 2021.
Manufacturing of QUICK V1 was completed in 2021 and assembled on the test rig in December 2021. Testing was successfully completed in December 2021 and the QUICK V1 test and validation report was reviewed by the TM in February 2022.
All the requirements related to the initial design of the second QUICK concept (V2) were completed which led to the successful delivery of the V2 Preliminary Design Review (PDR) report.
The V2 PDR documentation was completed in January 2022 and the review was conducted and signed off with the TM in February 2022.
All the requirements related to the final design of the second QUICK concept (V2) were completed which led to the successful delivery of the V2 Critical Design Review (CDR) report.
The V2 CDR documentation was completed in May 2022 and the review was conducted and signed off with the TM in May 2022.
Manufacturing of QUICK V2 was completed in January 2023 and assembled on the test rig in January 2023. Testing was successfully completed in February 2023 and the QUICK V1 test and validation report was reviewed by the TM in February 2023.
The final report was submitted in February 2023.

Progressi oltre lo stato dell’arte e potenziale impatto previsto (incluso l’impatto socioeconomico e le implicazioni sociali più ampie del progetto fino ad ora)

QUICK will deliver a number of ground breaking achievements that go much further beyond state-of-the-art in terms of disconnect systems.

The main attractive features include:
• A super-simple and elegant system with very low component count
• A steady state system efficiency of virtually 100%
- no electrical nor mechanical transmission of power during normal operation.
• A fully auto-synchronising system
- Coupling/decoupling is completely independent of the system speed and position.
• A very high torque transmission capability
- Magnetic couplings are known for their high torque transmission.
• All linear movement is contained within the QUICK system
• In case of any other faults within the system, it produces a natural safety slip torque.
• Very simple “control” is required
- Just a short pulse of DC current

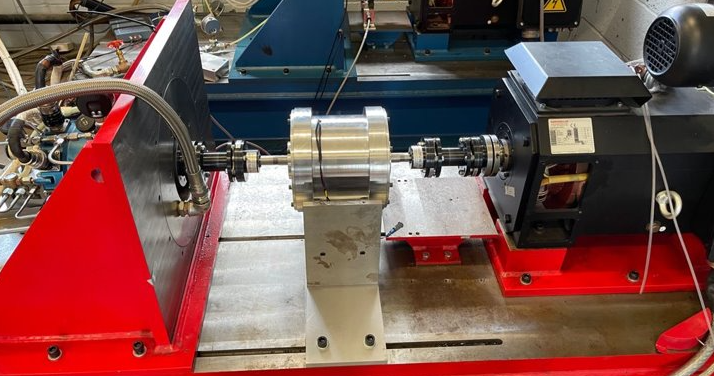

QUICK attached to motor (right), load (left) machines​
