Development of innovative FunctiOnal aiRcraft MOveable SurfAces

Informacje na temat projektu

FORMOSA

Identyfikator umowy o grant: 885971

DOI

10.3030/885971

Projekt został zamknięty

Data podpisania przez KE 23 Marca 2020

Data rozpoczęcia 1 Września 2020

Data zakończenia 28 Lutego 2023

Finansowanie w ramach

• SOCIETAL CHALLENGES - Smart, Green And Integrated Transport

Koszt całkowity

€ 500 000,00

Wkład UE

€ 500 000,00

Koordynowany przez

POLITECNICO DI MILANO
Italy

Periodic Reporting for period 2 - FORMOSA (Development of innovative FunctiOnal aiRcraft MOveable SurfAces)

Okres sprawozdawczy: 2021-12-01 do 2023-02-28

Podsumowanie kontekstu i ogólnych celów projektu

The FORMOSA project, addressed to the framework of the Clean Sky 2 Fast Rotorcraft IADP (Horizon2020), is aimed at developing innovative wing control surface concepts for the NextGen Civil Tiltrotor (NGCTR) manufactured by Leonardo S.p.A.
The main objectives of the FORMOSA project are to:
1. Replace the present NGCTR tiltrotor wing architecture, characterized by an inner large flap and external flaperon, with a single movable surface able to incorporate multiple functions including roll, flap control, and download reduction.
2. Minimize the encumbrance on the fixed wing, with an advantage for fuel storage.
3. Reduce the number and the weight of the actuators and the complexity of the actuation system, evaluating both standard hydraulic and innovative electrical systems for power generation.

Tiltrotors will contribute to the expected growth of air transport, therefore contributing to the goals of safe, secure, fast, affordable, and environmentally friendly travel. At the same time, research on new solutions for tiltrotor architecture will contribute to strengthening European competitiveness and innovation capacity.
The Fast Rotorcraft platform will provide more speed, longer range, and more productivity to fill the gap between conventional helicopters and other fixed-wing platforms and FORMOSA will give its contribution in terms of a lighter, simpler, and more efficient architecture for wing aerodynamic components in tiltrotors.

Prace wykonane od początku projektu do końca okresu sprawozdawczego oraz najważniejsze dotychczasowe rezultaty

The high-level objective of the FORMOSA project included the investigation of three innovative concepts for the NGCTR wing.
The design of the control surface and the selection of its actuators required the correct evaluation of the aerodynamic loads during the different maneuvers that the aircraft is required to do to fly safely.
To this aim, the FORMOSA consortium developed a new methodology based on coupled multibody – mid-fidelity aerodynamics simulations. The combination of the two approaches allowed an ideal trade-off, to obtain at the same time fast and time-accurate solutions.

The best concept was defined at the System Functional Review (SFR) in February 2022 while the design of the selected concept reached the Preliminary Design Review (PDR) in February 2023.
The final configuration presented was able to reduce the download in helicopter mode (-9% compared to the original design) allowing to reduce the fuel consumption during vertical take-off and landing maneuvers, in line with the objectives of the Clean Aviation programme.
A remarkable impact in airplane mode flight was presented as well, through the improvement of the roll performance obtained thanks to a 25% time-to-bank reduction.
Finally, to demonstrate the functionality of the innovative control surface developed by the FORMOSA consortium, a 1:1 functional mockup was manufactured and tested at CEiiA facilities.
During the activity, the FORMOSA team published 2 journal articles and 7 conference proceedings in international forums to promote awareness of project results and to exploit project results.

Innowacyjność oraz oczekiwany potencjalny wpływ (w tym dotychczasowe znaczenie społeczno-gospodarcze i szersze implikacje społeczne projektu)

In Europe’s vision for aviation, the goal is to have 90% of travellers within the region completing their door-to-door journey within 4 hours by 2050. Innovative aircraft types are pivotal to achieve this. Useful for passenger transport, rotorcrafts have also the potential to provide new transport capabilities for the future of air mobility. With an increased "golden hour distance" these vehicles are specifically suitable for relevant missions such as search and rescue, medical emergency, surveying, and policing.
Research on new solutions for tiltrotor architecture will strengthen Europe’s competitiveness and innovation.
The FORMOSA consortium proposed a new design that integrates both the flap and the flaperon on the same surface, easing their use and reducing the weight of the movable surface.
With the technology developed by FORMOSA, further optimisations of this rotorcraft configuration can be done, also considering the operations through short take-off, landing, and approach.

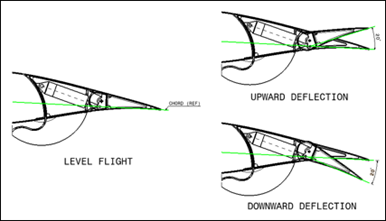

Flaperon actuator kinematics

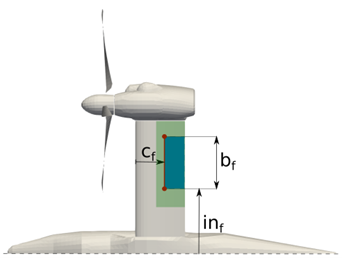

Control surface geometric parameters

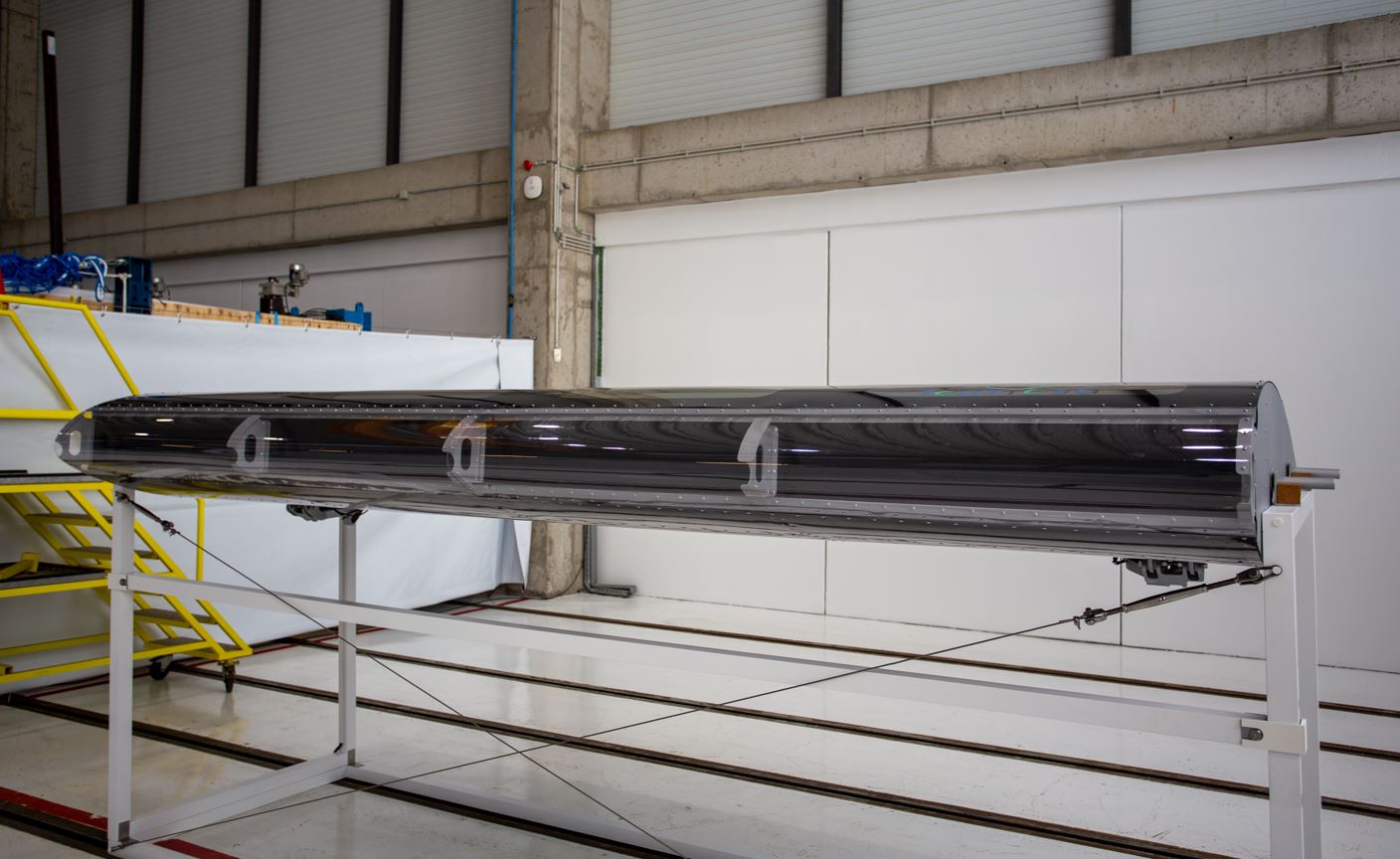

Mock-up

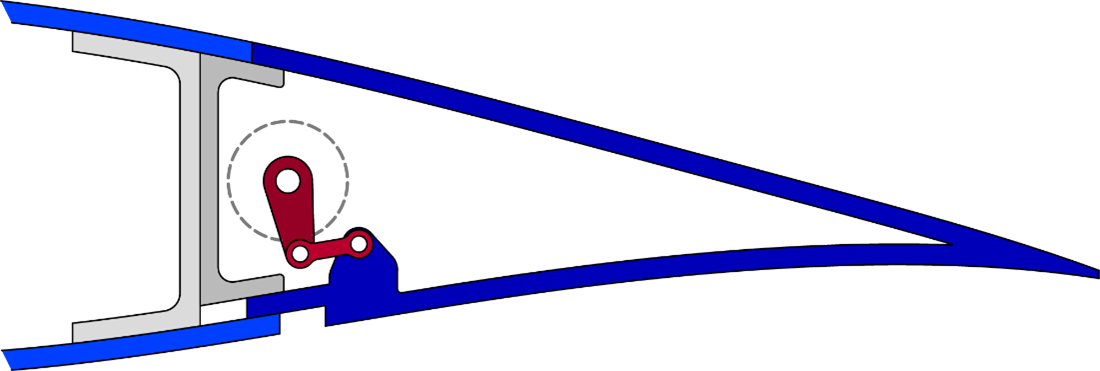

Proposed configuration III (morphing)

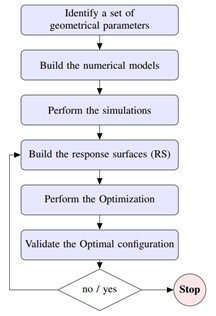

Optimization design workflow

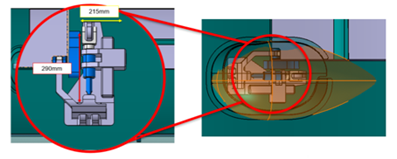

Flap actuator - detail

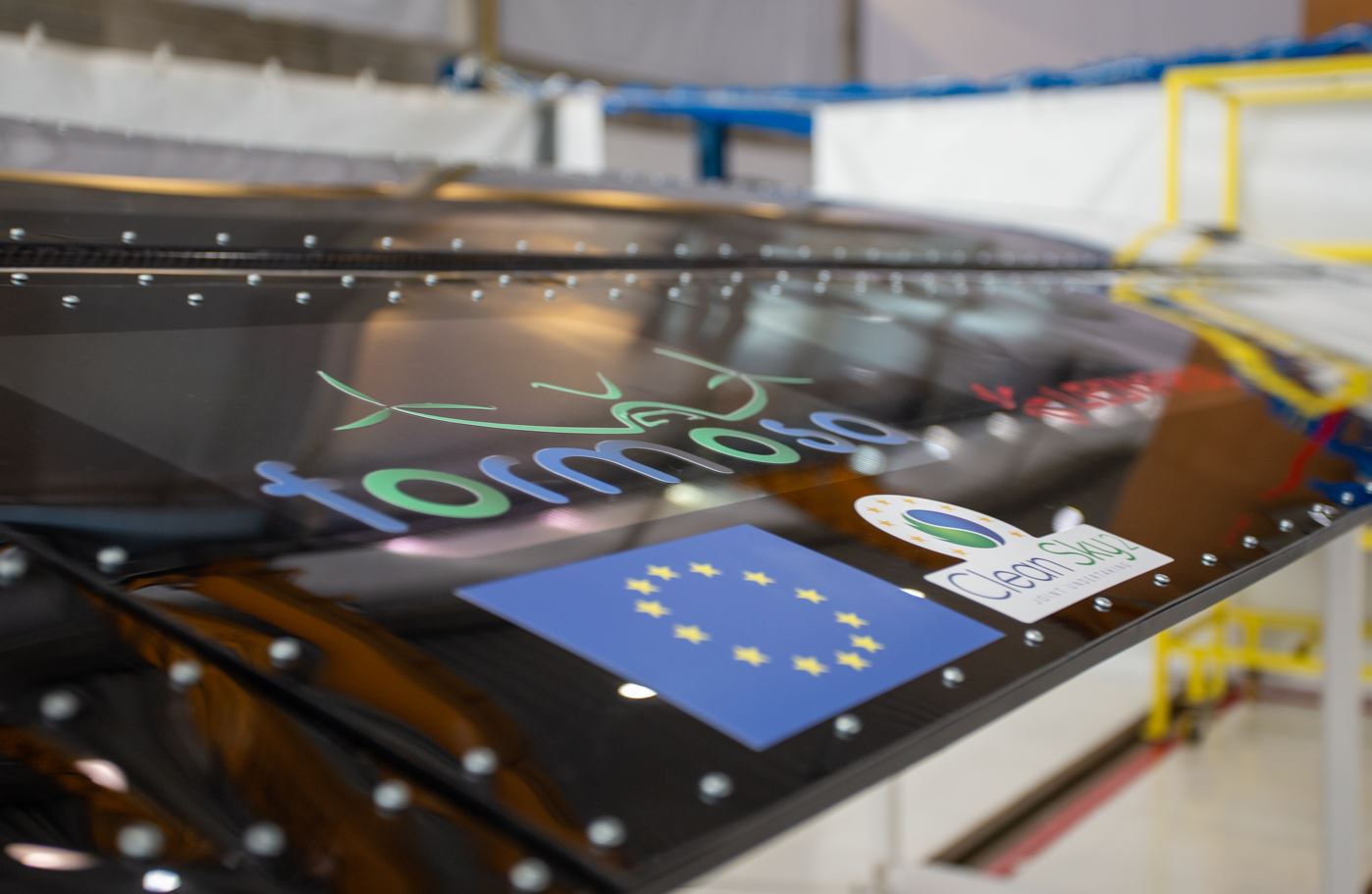

Mock-up and logos

Final meeting

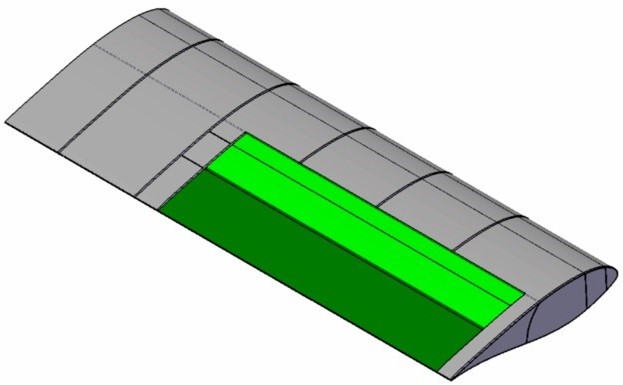

Proposed configuration I

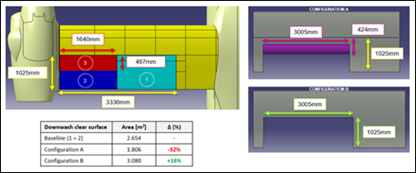

Downwash area

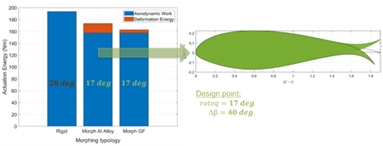

Energy comparison (actuation systems)

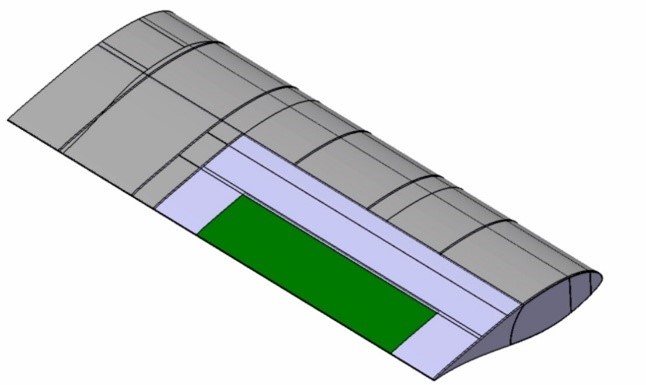

Proposed configuration II

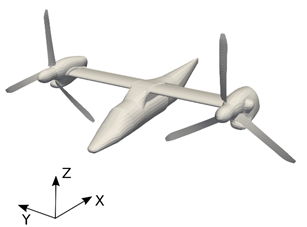

Tiltrotor full model

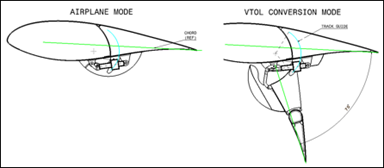

Flap actuator kinematics
