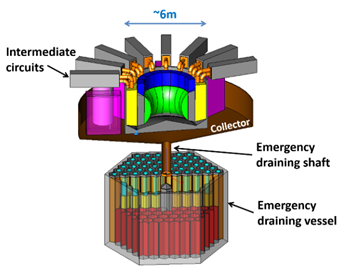

WP1 dealt with the integral safety assessment and overall reactor design. A power plant software simulator was constructed and verified including models for the primary and intermediate fuel salt circuit and the energy conversion system. The MSFR responds quickly to varying demands and adapts its power output without excessive temperature variations. Also, modifying the fuel mass flow rate can control the MSFR. A risk assessment methodology has been developed based on the integrated safety assessment methodology. Postulated initiating events were identified and design modifications to guarantee three lines of defence for each of these events. Modifications to the MSFR design have been made, e.g. on cold plugs and passive decay heat removal.
The main objective of WP2 was to measure safety-related data of fuel salts. An installation was constructed for synthesis of actinide fluorides and experimental studies with molten fluorides. These were used for thermodynamic assessment of the fuel salt important for chemistry control of the salt and nuclear reactor control, like phase equilibrium studies, and measurements of heat capacity and thermal conductivity. Studies were done on the vaporization of fuel salt to evaluate the retention properties. To assess the safety after salt draining, we have studied the interaction of salt with water under gamma irradiation. A new instrument to measure the viscosity of salt was constructed and tested.
In WP3 the major experimental contributions in two large setups (DYNASTY and SWATH) have been achieved. The DYNASTY facility was modified and used to generate experimental data for stability analysis and for validation of numerical codes. The extended DYNASTY loop simulates two connected circuits and was modelled extensively and tested experimentally. SWATH-W and SWATH-S were used to carry out thermal-hydraulics experiments to investigate the performance of numerical models. SWATH-W employs water to study pure hydraulics phenomena. SWATH-S uses a molten salt to perform thermal hydraulics measurements. Phase change phenomena have been studied experimentally and modelled afterwards. Various aspects of cold plug designs have been evaluated numerically and tested experimentally, and a novel design of the cold plug based on the heat transfer balance between an electric heater and gas cooler was demonstrated experimentally.
In WP4 steady state and transient analyses have been performed on the MSFR. Steady-state single physics results were generated and compared Differences were small and attributable to mesh density or modelling differences. Multi-physics code systems were developed and compared using the MSR benchmark and results from the DYNASTY facility. Transient analysis focused on the unprotected loss of fuel flow scenario. Uncertainty quantification included both uncertainties in nuclear data, and the development of novel techniques for the error quantification in multi-physics systems.
The objective of WP5 is to perform a safety assessment and to update the chemical plant design considering chemical and nuclear safety issues. One task focused on zirconium, to determine its activity coefficient, and to design a process to extract it. Activity coefficients were also measured for uranium and iodine. Several studies have been performed to determine the electrochemical and thermodynamic properties of various actinides in the salt needed for experimental studies on the reductive extraction technique envisioned for the MSFR. To this end, ThF4 has been synthesized and purified in large amounts, next to UF4. The scheme of the chemical plant has been updated and thermochemical calculations have been done to provide transfer coefficients. These data have been used to calculate the radionuclide inventory as well as the radioactivity, heat deposition, and shielding requirements at each stage of the processing unit using newly developed software. To improve the corrosion resistance and thermal damage of nickel alloys, Yttria Satabilized Zirconia (YSZ) coatings were produced by sol-gel/dip-coating. Studies of the mechanical properties revealed that deposition of YSZ increased the hardness of the substrate.
In WP6 a summer school was organized with focus on scientific fundamentals of fluid fuel reactors. Almost 90 MSc/PhD students and young professionals in the thorium-MSR field from all over the world participated, and responded positively about the organization and high quality. During three days before the final project meeting, a boot camp was organized with the US-project NUSTEM. The boot camp was attended by about 40 students and professors. On July 4-5 the final meeting was held in Delft. About 90 participants learned about results achieved in SAMOFAR and the status of MSR world-wide. The SAMOFAR website (www.SAMOFAR.eu) acts as portal to reach the public and for information exchange and archiving. The YouTube channel (
http://samofar.eu/samofar-youtube-channel/(odnośnik otworzy się w nowym oknie)) was updated regularly and contains movies about nuclear energy and MSR, lectures from the summer school, and a ten-minutes wrap-up of each work package recorded at the final meeting. The midterm Stakeholder Bulletin has been distributed to 280 contacts and is available via
http://samofar.eu/samofar-stakeholders-bulletin-january2018/(odnośnik otworzy się w nowym oknie).
WP7 deals with coordination of the project, communication among partners, EC and external stakeholders, and reporting towards the European Commission. The midterm review meeting took place in July 2017. Reviewers and advisory board members provided feedback and indicated that the project is well managed. In July 2019 the final meeting was held together with a stakeholder meeting in Delft. The advisory board members were very positive about the results and provided useful advice for contents and management of follow-up research.
