Hybrid AIRcraft seating requirement specification and Design

Informacje na temat projektu

HAIRD

Identyfikator umowy o grant: 738076

DOI

10.3030/738076

Projekt został zamknięty

Data podpisania przez KE 14 Grudnia 2016

Data rozpoczęcia 1 Stycznia 2017

Data zakończenia 31 Grudnia 2017

Finansowanie w ramach

• SOCIETAL CHALLENGES - Smart, Green And Integrated Transport

Koszt całkowity

€ 207 362,50

Wkład UE

€ 207 362,50

Koordynowany przez

ACONDICIONAMIENTO TARRASENSE ASSOCIACION
Spain

Periodic Reporting for period 1 - HAIRD (Hybrid AIRcraft seating requirement specification and Design)

Okres sprawozdawczy: 2017-01-01 do 2017-12-31

Podsumowanie kontekstu i ogólnych celów projektu

HAIRD project has delivered a new design for a next generation aircraft seating which is comfortable, healthy (reduction of Deep Vein Thrombosis, DVT risk), light-weight, fast to disassemble, easy to dismantle, cost efficient to produce, highly recyclable and reliable in structural integrity.
All these points help to reduce the weight that has a direct impact in the reduction of the fuel consumption and therefore, CO2-emisions. Also, the employment of new materials with high recyclability leads to increase the recyclability of the components which consequently result in reduction of seating environmental impact.

Prace wykonane od początku projektu do końca okresu sprawozdawczego oraz najważniejsze dotychczasowe rezultaty

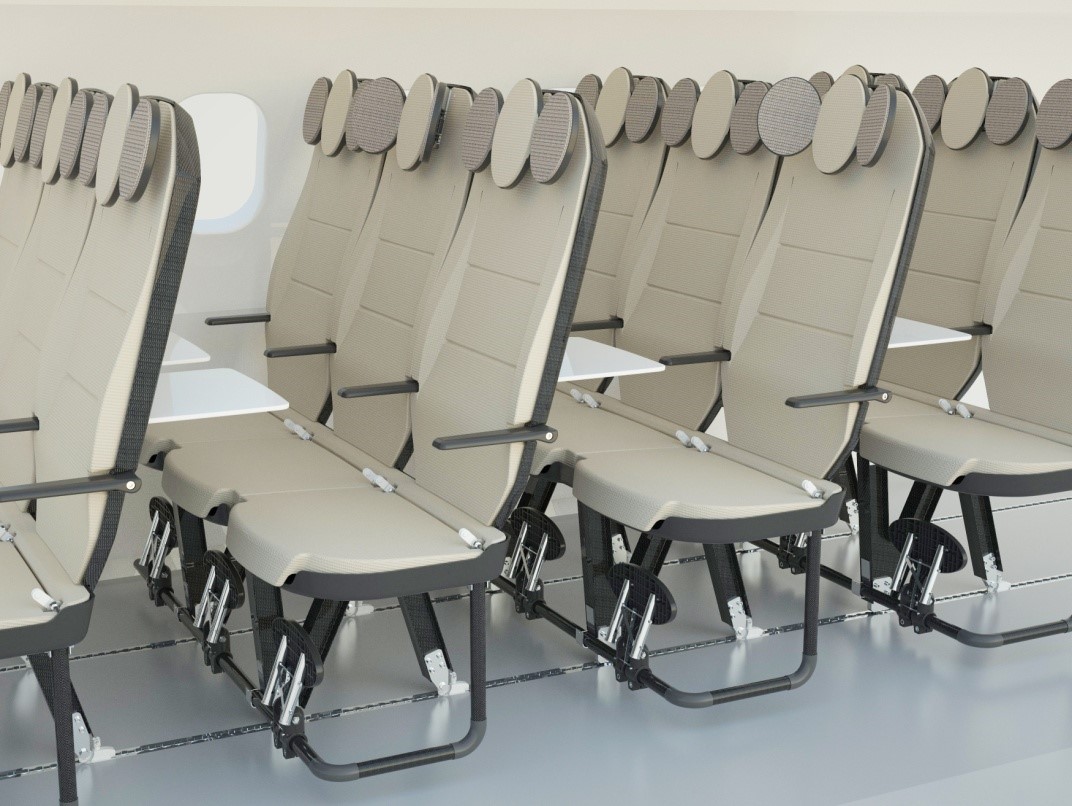

HAIRD is a seating designed to reduce DVT risk (footrest, dynamic seat base, and glass and bottle support), ensure its multi-functionality (mobile support and placards compartment) and using simple surfaces for composite manufacturing (Sheet Moulding Compound, SMC, and Wet Compression Moulding, WCM). On the other hand, legs, luggage bar, armrest, footrest, headrest, tray-table, glass and bottle support, and mobile support has been designed for easy disassembling and dismantling. The weight of HAIRD seat is 8.56kg and 10kg for economy class and economy class plus, respectively. Moreover, a 95% of the weight of the seat is recyclable.

Innowacyjność oraz oczekiwany potencjalny wpływ (w tym dotychczasowe znaczenie społeczno-gospodarcze i szersze implikacje społeczne projektu)

The fact that the application of conventional technologies (SMC and WCM) are used to design a new generation aircraft seating is a novelty and HAIRD design is the first seating where they are applied. On the other hand, a novel design of headrest has been developed. These two points have allowed to submit a patent for the whole HAIRD design and an industrial design protection for HAIRD’s headrest.
